Resource Browser

Introduction

The Devtron Resource Browser provides you a central interface to view and manage all your Kubernetes objects across clusters. It helps you perform key actions like viewing logs, editing live manifests, and even creating/deleting resources directly from the user interface. This is especially useful for troubleshooting purposes as it supports multi-cluster too.

Additional References

• Resource browser versus traditional tools like kubectl

• Why you should use Devtron's Resource Browser

First, the Resource Browser shows you a list of clusters added to your Devtron setup. By default, it displays a cluster named 'default_cluster' after the initial setup is successful.

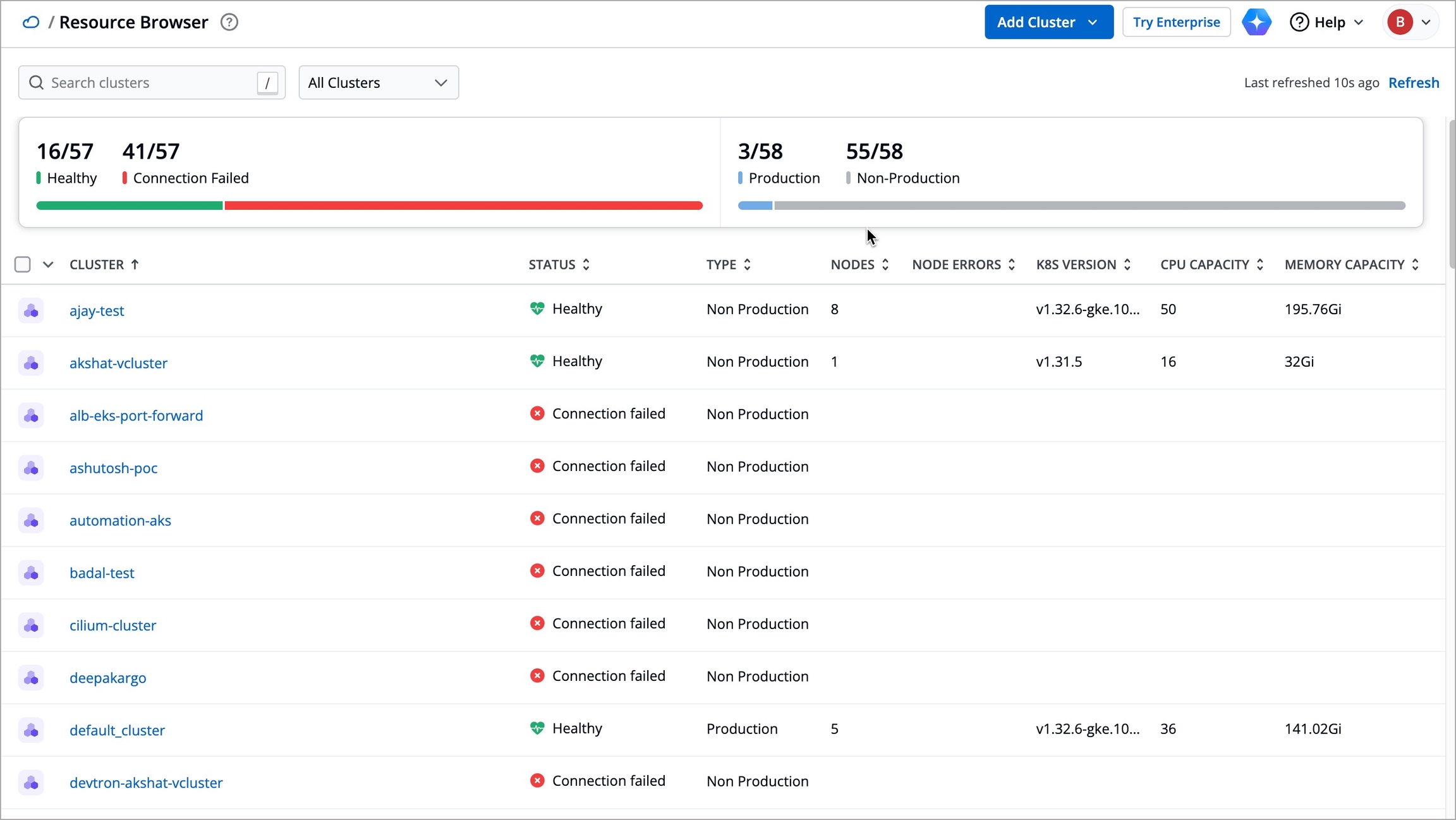

Figure 1: Devtron Resource Browser - List of Clusters

You can easily connect more clusters by clicking the Add Cluster button located at the top of the browser. This will take you to the Cluster & Environments configuration within Global Configurations.

You may click a cluster to view and manage all its resources as shown below.

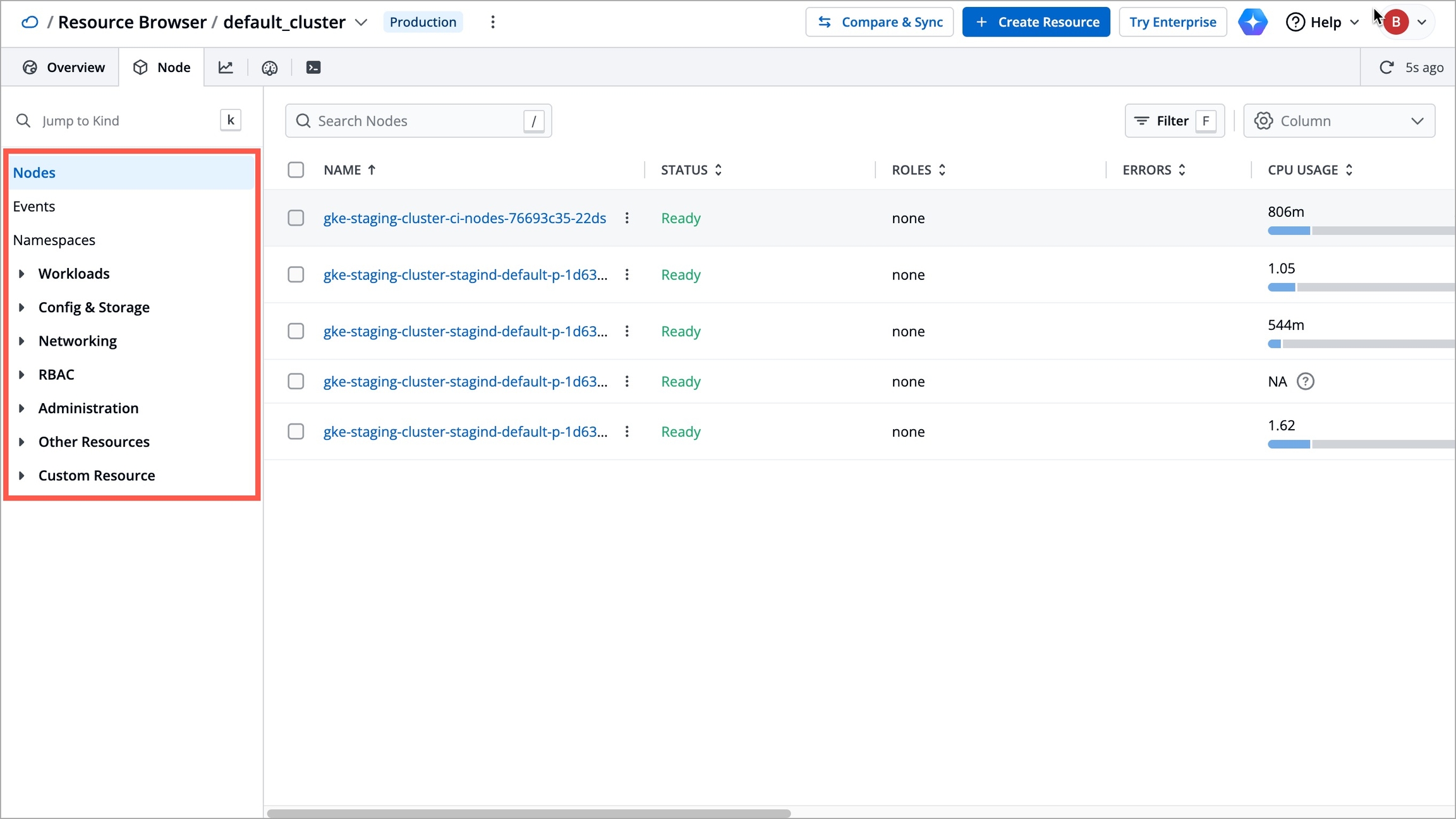

Figure 2: Resources within Cluster

---

Overview

Figure 3: Resource Browser - Overview Page

Resource Utilization

This shows the combined CPU and memory consumption of all running pods in the cluster.

Parameter	Description
CPU Usage	Percentage of CPU resources currently being used across all the pods in the cluster.
CPU Capacity	Total amount of CPU resources available across all the nodes in the cluster. Measured in millicores (m).
CPU Requests	Total amount of CPU resources requested by all the pods in the cluster.
CPU Limits	Maximum amount of CPU resources that a total number of pods can use in the cluster.
Memory Usage	Percentage of memory resources currently being used across all the pods in the cluster.
Memory Capacity	Total amount of memory resources available across all the nodes in the cluster. Measured in Megabytes (Mi).
Memory Requests	Total amount of memory resources requested by all the pods in the cluster.
Memory Limits	Maximum amount of memory resources that a total number of pods can use in the cluster.

Errors

This shows errors in the cluster. If no error is present in the cluster, Resource Browser will not display this section.

Catalog Framework

Who Can Perform This Action?

Users need to have super-admin permission to edit the catalog framework.

Based on the schema provided in the catalog framework, you can add relevant details for each cluster. Refer Catalog Framework for more details.

Readme

Who Can Perform This Action?

Users need to have super-admin permission to edit the readme file.

You can also include additional information about your cluster using the Markdown editor.

---

Discovering Resources

Who Can Perform This Action?

Users need to have access to the cluster to discover resources.

Search Resources

You can use the searchbox to browse the resources.

Figure 4: Locate Resources using Searchbox

Filter Resources

Moreover, you can use filters that allow you to quickly filter your workload as per labels, field selectors, or CEL expression as shown below.

Edit Manifest

Who Can Perform This Action?

User needs to be an admin of the Kubernetes resource to edit its manifest.

You can edit the manifest of a Kubernetes object. This can be for fixing errors, scaling resources, or changing configuration.

Figure 5: Editing a Live Manifest

View Events

You can monitor activities like creation, deletion, updation, scaling, or errors in the resources involved. Refer Events to learn more.

Figure 6: Viewing All Events

Delete

Who Can Perform This Action?

User needs to be an admin of the Kubernetes resource to delete it.

You can delete an unwanted resource if it is orphaned and no longer required by your applications.

Figure 7: Deleting a Resource

---

Nodes

You can see the list of nodes available in your cluster. Typically you have several nodes in a cluster; in a learning or resource-limited environment, you might have only one node.

The components on a typical node include the kubelet, a container runtime, and the kube-proxy.

If you have multiple nodes, you can search a node by name or label in the search bar. The search result will display the following information about the node. To display a parameter of a node, use Columns on the right side, select the parameter to display from the drop-down list, and click Apply.

Figure 8: Searching and Filtering Nodes

Fields	Description
Node	Alphanumeric name of the node
Status	Status of a node. It can be either Ready or Not Ready.
Roles	Shows the roles of a node, e.g., agent
Errors	Shows the number of errors in nodes (if any)
K8s Version	Shows the version of Kubernetes cluster
Node Group	Shows which collection of worker nodes it belongs to
No. of Pods	Shows the total number of pods present in the node

Clicking on a node shows you a number of details such as:

• CPU Usage and Memory Usage of Node

• CPU Usage and Memory Usage of Each Pod

• Number of Pods in the Node

• List of Pods

• Age of Pods

• Labels, Annotations, and Taints

• Node IP

Figure 9: Checking Node Summary

Further using the Devtron UI, you will be able to:

• Debug a Node
• Cordon a Node
• Drain a Node
• Taint a Node
• Edit a Node Config
• Delete a Node

Why Are Node Operations Required?

Your applications run on pods, and pods run on nodes. But sometimes, Kubernetes scheduler cannot deploy a pod on a node for several reasons, e.g., node is not ready, node is not reachable, network is unavailable, etc. In such cases, node operations help you manage the nodes better.

Who Can Perform These Actions?

Users need to have super-admin permission to perform node operations.

Debug a Node

You can debug a node via Cluster Terminal by selecting your namespace and image from the list that has all CLI utilities like kubectl, helm, netshoot etc. or can use a custom image, which is publicly available.

• Click Debug.



  Figure 10a: Debugging a Node
• Debug a node by selecting the terminal shell, i.e., bash or sh.



  Figure 10b: Debug Terminal

Cordon a Node

Cordoning a node means making the node unschedulable. After cordoning a node, new pods cannot be scheduled on this node.

Figure 11a: Visual Representation - Cordoning a Node

• Click Cordon.



  Figure 11b: Cordoning a Node
• A confirmation dialog box will appear, click Cordon Node to proceed.



  Figure 11c: Cordon Confirmation

The status of the node shows SchedulingDisabled with Unschedulable parameter set as true.

Similarly, you can uncordon a node by clicking Uncordon. After a node is uncordoned, new pods can be scheduled on the node.

Drain a Node

Before performing maintenance on a node, draining a node evicts all of your pods safely from a node. Safe evictions allow the pod’s containers to gracefully terminate and honour the PodDisruptionBudgets you have specified (if relevant).

Figure 12a: Visual Representation - Draining a Node

After the node is drained, all pods (including those managed by DaemonSets) in the node will be automatically drained to other nodes in the cluster, and the drained node will be set to cordoned status.

• Click Drain.



  Figure 12b: Draining a Node
• A confirmation dialog box will appear, click Drain Node to proceed.



  Figure 12c: Drain Confirmation

You can also select from the following conditions before draining a node:

Name	Usage
Grace Period	Period of time in seconds given to each pod to terminate gracefully. If negative, the default value specified in the pod will be used.
Delete empty directory data	Enabling this field will delete the pods using empty directory data when the node is drained.
Disable eviction (use with caution)	Enabling this field will force drain to use delete, even if eviction is supported. This will bypass checking PodDisruptionBudgets. Note: Make sure to use with caution.
Force drain	Enabling this field will force drain a node even if there are pods that do not declare a controller.
Ignore DaemonSets	Enabling this field will ignore DaemonSet-managed pods.

Taint a Node

Taints are key:value pairs associated with effect. After you add taints to nodes, you can set tolerations on a pod to allow the pod to be scheduled to nodes with certain taints. When you taint a node, it will repel all the pods except those that have a toleration for that taint. A node can have one or many taints associated with it.

Figure 13a: Visual Representation - Tainting a Node

Note: Make sure to check taint validations before you add a taint.

• Click Edit taints.



  Figure 13b: Tainting a Node
• Enter the key:value pairs and select the taint effect from the drop-down list.



  Figure 13c: Adding Taints
• Click Save.

You can also add more taints using + Add taint button, or delete the existing taint by using the delete icon.

Additional Reference

Click here to read about taint effects.

Edit a Node Config

This allows you to directly edit any node. It will open the editor which contains all the configuration settings in which the default format is YAML. You can edit multiple objects, although changes are applied one at a time.

Figure 14: Editing Node Config

• Go to the YAML tab and click Edit YAML.

• Make the changes using the editor.

• Click Review & Save changes to compare the changes in the YAML file.

• Click Apply changes to confirm.

Delete a Node

You can also delete a node by clicking the Delete button present on the right-hand side.

Figure 15a: Deleting a Node

Figure 15b: Delete Confirmation

The node will be deleted from the cluster.

You can also access Cluster Terminal from your node.

---

Pods

Who Can Perform This Action?

Users need to have access to the cluster to view its pods and its data.

Manifest

Shows you the configuration of the selected pod and allows you to edit it. Refer Edit Manifest to learn more.

Events

Shows you all the activities (create/update/delete) of the selected pod. Refer View Events to know more.

Logs

Examining your cluster's pods helps you understand the health of your application. By inspecting pod logs, you can check the performance and identify if there are any failures. This is especially useful for debugging any issues effectively.

Moreover, you can download the pod logs for ease of sharing and troubleshooting as shown in the below video.

Pod Last Restart Snapshot

Frequent pod restarts can impact your application as it might lead to unexpected downtimes. In such cases, it is important to determine the root cause and take actions (both preventive and corrective) if needed.

In case any of your pod restarts, you can view its details from the pod listing screen:

• Last pod restart event, along with the timestamp and message

• Reason behind restart

• Container log before restart

• Node status and events

Figure 16: Checking Restart Pod Log

Terminal

Who Can Perform This Action?

User needs to be an admin of the Kubernetes resource to access pod terminal.

You can access the terminal within a running container of a pod to view its logs, troubleshoot issues, or execute commands directly. This is different from the cluster terminal you get at node level.

Launching Ephemeral Container

This is a part of Pod Terminal. It is especially useful when kubectl exec is insufficient because a container has crashed or a container image doesn't include debugging utilities.

1. In the Resource Browser, select Pod within Workloads.

2. Use the searchbar to find and locate the pod you wish to debug. Click the pod.

3. Go to the Terminal tab

4. Click Launch Ephemeral Container as shown below.

   You get 2 tabs:

   1. Basic - It provides the bare minimum configurations required to launch an ephemeral container.



   Figure 17: Basic Tab

   It contains 3 mandatory fields:

   • Container name prefix - Type a prefix to give to your ephemeral container, for e.g., debug. Your container name would look like debug-jndvs.

   • Image - Choose an image to run from the dropdown. Ephemeral containers need an image to run and provide the capability to debug, such as curl. You can use a custom image too.

   • Target Container name - Since a pod can have one or more containers, choose a target container you wish to debug, from the dropdown.

   • Advanced - It is particularly useful for advanced users that wish to use labels or annotations since it provides additional key-value options. Refer Ephemeral Container Spec to view the supported options.

Devtron ignores the 'command' field while launching an ephemeral container

---

Other Resource Kinds

Other resources in the cluster are grouped under the following categories:

• Namespace

• Workloads

• Config & Storage

• Networking

• RBAC

• Administration

• Other Resources

• Custom Resource

Figure 18: Resources within Cluster

---

Cluster Terminal

User with super-admin access can now troubleshoot cluster issues by accessing the cluster terminal from Devtron. You can select an image from the list that has all CLI utilities like kubectl, helm, netshoot etc. or can use a custom image, which is publicly available.

To troubleshoot a cluster or a specific node in a cluster, click the terminal icon on the right side.

Figure 19: Terminal Icon

• You will see the user-defined name for the cluster in Devtron. E.g. default-cluster.

• Select the node you wish to troubleshoot from the Node drop-down. E.g. demo-new.

• Select the namespace from the drop-down list which you have added in the Environment section.
• Select the image from the drop-down list which includes all CLI utilities or you can use a custom image, which is publicly available.

• Select the terminal shell from the drop-down list (e.g. sh, bash) to troubleshoot a node.

Use Case - Debugging Pods

You can also create a pod for debugging which will connect to the pod terminal. To find out why a particular pod is not running, you can check Pod Events and Pod Manifest for details.

The Auto select option automatically selects a node from a list of nodes and then creates a pod. Alternatively, you can choose a node of your choice from the same dropdown for debugging.

The Debug Mode is helpful in scenarios where you can't access your node by using an SSH connection. Enabling this feature opens an interactive shell directly on the node. This shell provides unrestricted access to the node, giving you enhanced debugging capabilities.

• Check the current state of the pod and recent events with the following command:

kubectl get pods

• To know more information about each of these pods and to debug a pod depending on the state of the pods, run the following command:

kubectl describe pod <podname>

Here, you can see configuration information about the container(s) and pod (labels, resource requirements, etc.), as well as status information about the container(s) and pod (state, readiness, restart count, events, etc.). Click here to know more about pod lifecycle.

A container can have no shells or multiple shells running in it. If you are unable to create a successful connection, try changing the shell, as the container may not have that shell running.

---

Creating Resources

Who Can Perform This Action?

User needs to be an admin of the Kubernetes resources to create resources.

You can create one or more Kubernetes objects in your cluster using YAML. In case you wish to create multiple objects, separate each resource definition by three dashes (---).

Once you select a cluster in Resource Browser, click + Create Resource, and add the resource definition.

In the below example, we have created a simple pod named nginx:

Figure 20: Creating Resources within Cluster

Here's one more example that shows the required fields and object specifications for a Kubernetes Deployment:

Spec File

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
     app: nginx
spec:
  replicas: 2
  selector:
    matchLabels:
       app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
       - name: nginx
         image: nginx:1.14.2
         ports:
         - containerPort: 80

---

Running Kubectl Commands Locally

Introduction

If you wish to run kubectl commands from your local system, you need to have access to your cluster. Traditionally, the kubeconfig file (./kube/config) helps you connect with the cluster from your local system.

Figure 21: Kubeconfig File

Challenges in Kubeconfig

Kubeconfig becomes painstakingly difficult to maintain especially when it comes to:

• Granting or revoking access to the cluster for multiple people

• Changing the permissions and subsequently the access token

• Adding/Updating/Deleting the entries of cluster URLs and tokens

• Keeping a record of multiple kubeconfig files

Our Solution

Devtron helps in reducing the challenges and simplifying the maintenance of kubeconfig file through:

• Devtron's Proxy URL for Cluster - A standardized URL that you can use in place of your Kubernetes cluster URL.

• Devtron's Access Token - A kubectl-compatible token which can be generated and centrally maintained from Global Configurations → Authorization → API tokens.

Steps

Prerequisite: An API token with necessary permissions for the user(s) to access the cluster.

If you are not a super-admin and can't generate a token yourself, you can find the session token (argocd.token) using the Developer Tools available in your web browser as shown below.

Figure 22: Using Session Token

1. Go to ~/.kube folder on your local machine and open the config file. Or you may create one with the following content:

kubeconfig

apiVersion: v1
kind: Config
clusters:
- cluster:
    insecure-skip-tls-verify: true
    server: https://<devtron_host_name>/orchestrator/k8s/proxy/cluster/<cluster_name>
  name: devtron-cluster
contexts:
- context:
    cluster: devtron-cluster
    user: admin
  name: devtron-cluster
current-context: devtron-cluster
users:
- name: admin
  user:
    token: <devtron_token>

1. Edit the following placeholders in the server field and the token field:

Placeholder	Description	Example	Where to Find
<devtron_host_name>	Hostname of the Devtron server	demo.devtron.ai	Host URL Page
<cluster_name>	Name of the cluster (or cluster ID)	devtron-cluster	Applications Page
<devtron_token>	API token or session token	-	Authorization Page

Figure 23: Editing Kubeconfig File

1. Test the connection to the cluster by running any kubectl command, e.g., kubectl get ns or kubectl get po -A

Additional References

Once the connection is successful, you may run any kubectl operations from your system.

Use Case - Port Forwarding

Assume your applications are running in a Kubernetes cluster on cloud. Now, if you wish to test or debug them on your local machine, you can perform port forwarding. It creates a tunnel between a port on your machine and a port on a resource within your cluster. Therefore, you can access applications running inside the cluster as though they are running locally on your machine.

Once you have successfully connected to the cluster, you may run the port-forward command. Refer kubectl port-forward to see a few examples.

Figure 24: Example - Port Forwarding
