Job Overview

The Overview page provides a centralized view of a job’s details within Devtron. It allows users to quickly access information about the job, manage tags, and view job pipelines — all in a single, organized interface.

Figure 1: Job's Overview

The Overview page contains three main sections:

  • About: Contains job's metadata such as name, description, project, project, creator, and it also includes options to manage tags.

  • Job Pipelines: Displays all job pipelines along with their last status and quick access to associated workflows.


About

The About section allows you to:

  • View key job details

  • Change the project your application is assigned to

  • Manage tags that you may have added during the job’s creation

The left side of the About section displays essential information about the job.

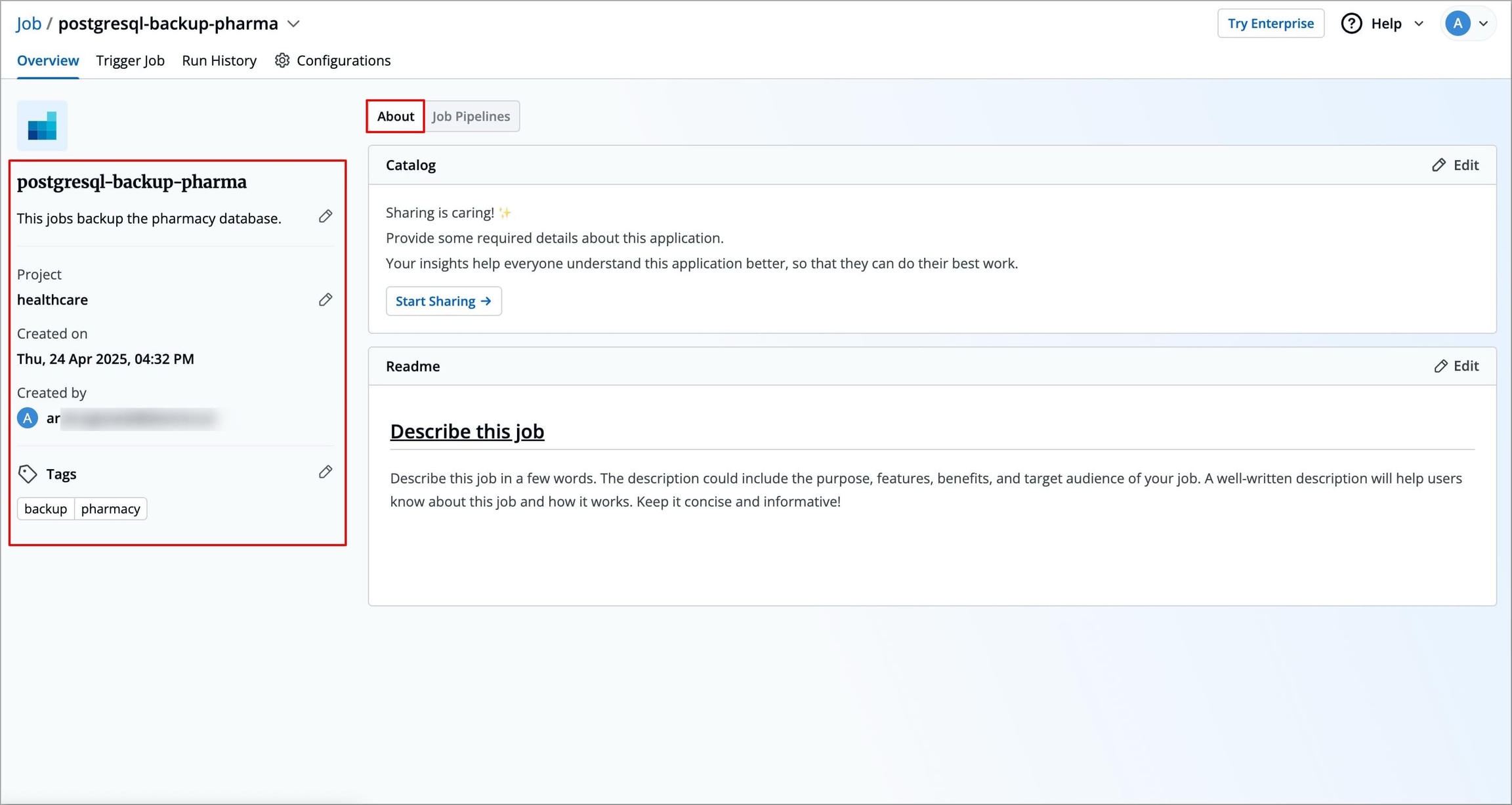

Figure 2: Job's Basic Info

The table below captures all the key elements presented in this section, along with their descriptions and whether they can be edited by the user.

Field Name
User Editable
Description

Job Name

No

Displays the name of the application (e.g., backend-healthcare-app).

Short Description

Yes

A short, optional description to summarize the application's purpose.

Project

Yes

Indicates the current project under which the application is organized. You can change the project directly from this section.

  1. Click the Edit icon next to the current project.

  2. In the Change Project window, select the new project from the dropdown.

  3. Click Save.

Changing the project will revoke access for existing users and grant access only to those who have permissions in the newly selected project.

Created on

No

Shows the exact date and time when the application was created.

Created by

No

Displays the email address of the user who created the application.

Tags

Yes

Key-value pairs used for identifying and organizing the application and can be propagated as Kubernetes labels. To learn more refer Tags section.

Tags

Tags are Key-value pairs used for identifying and organizing the application. Users can propagate tags as Kubernetes labels to enable filtering, bulk operations, and integrations with Kubernetes tools. To do so, follow the steps below.

  1. Click the Edit icon next to Tags.

  2. On the Manage Tags page, Click + Add tag to add a new tag.

  3. You can click X icon to delete an existing tag.

  4. You can click the propagation icon to propagate a tag (turns dark grey when propagated), click again to remove propagation.

  5. Click Save, configured Tags will reflect immediately under Tags in About Section

    Figure 3: Tags

Readme

The right side of the About section contains a README area where you can maintain job-specific notes or documentation. The Readme supports Markdown formatting, making it easy to include formatted text, instructions, or important context related to the application.

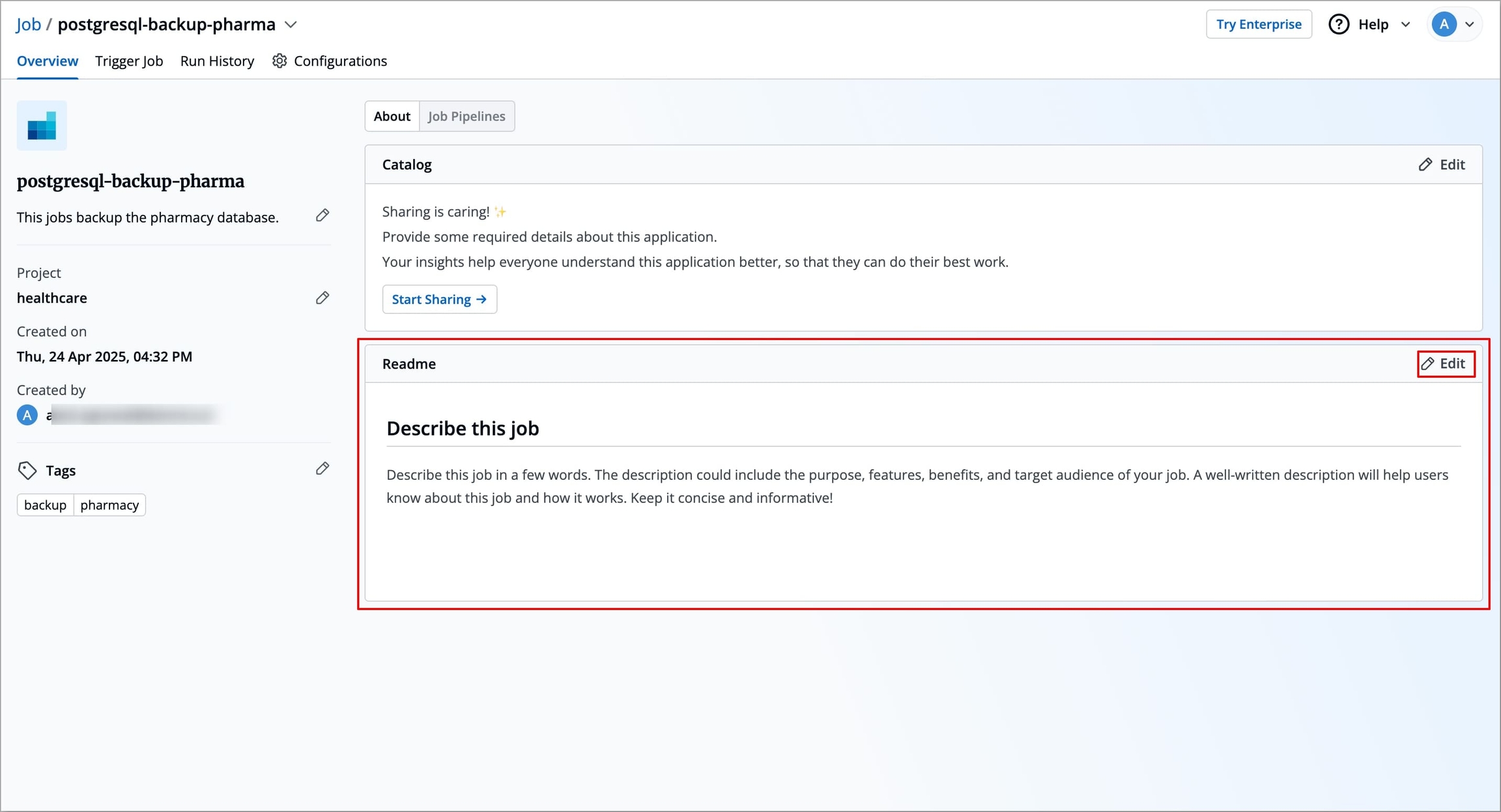

Figure 4: Readme

To add or update the Readme:

  1. Click the Edit button in the Readme section.

  2. A Markdown editor will appear where you can write or modify content under the Write tab.

  3. Use standard Markdown syntax to format text, create lists, insert links, and more.

  4. Preview the content using the Preview tab.

  5. Click Save to update the README.

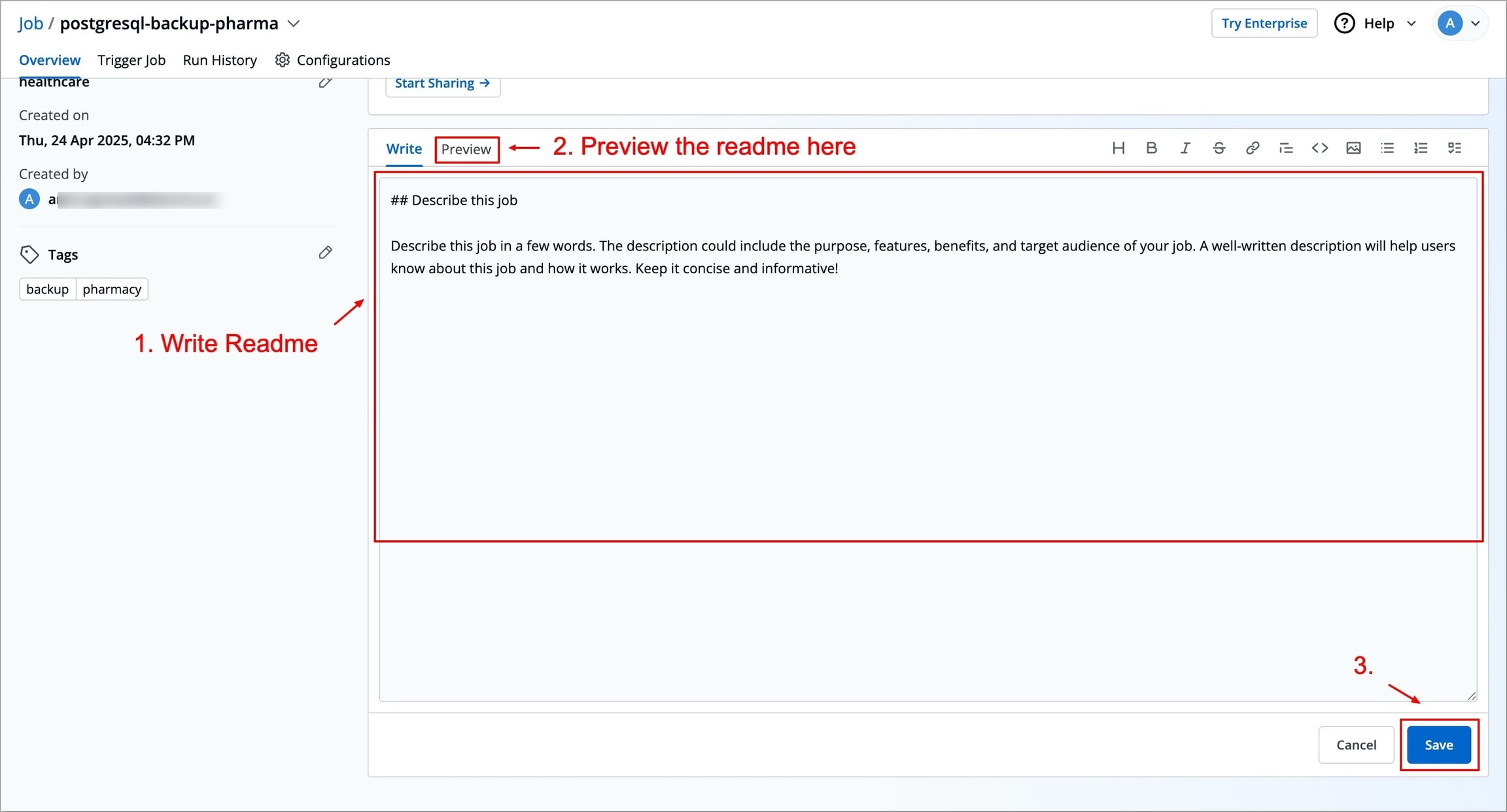

Figure 5: Editing Readme

After saving, the system displays the email address of the user who last updated the README, along with the date and time. This information appears in the header of the Readme section, beside the title.

Catalog

The Catalog in the About section displays information about your job, such as Container port, Environment Variables, Arguments, Resources(CPU and RAM). This data is managed using Devtron’s Catalog Framework.

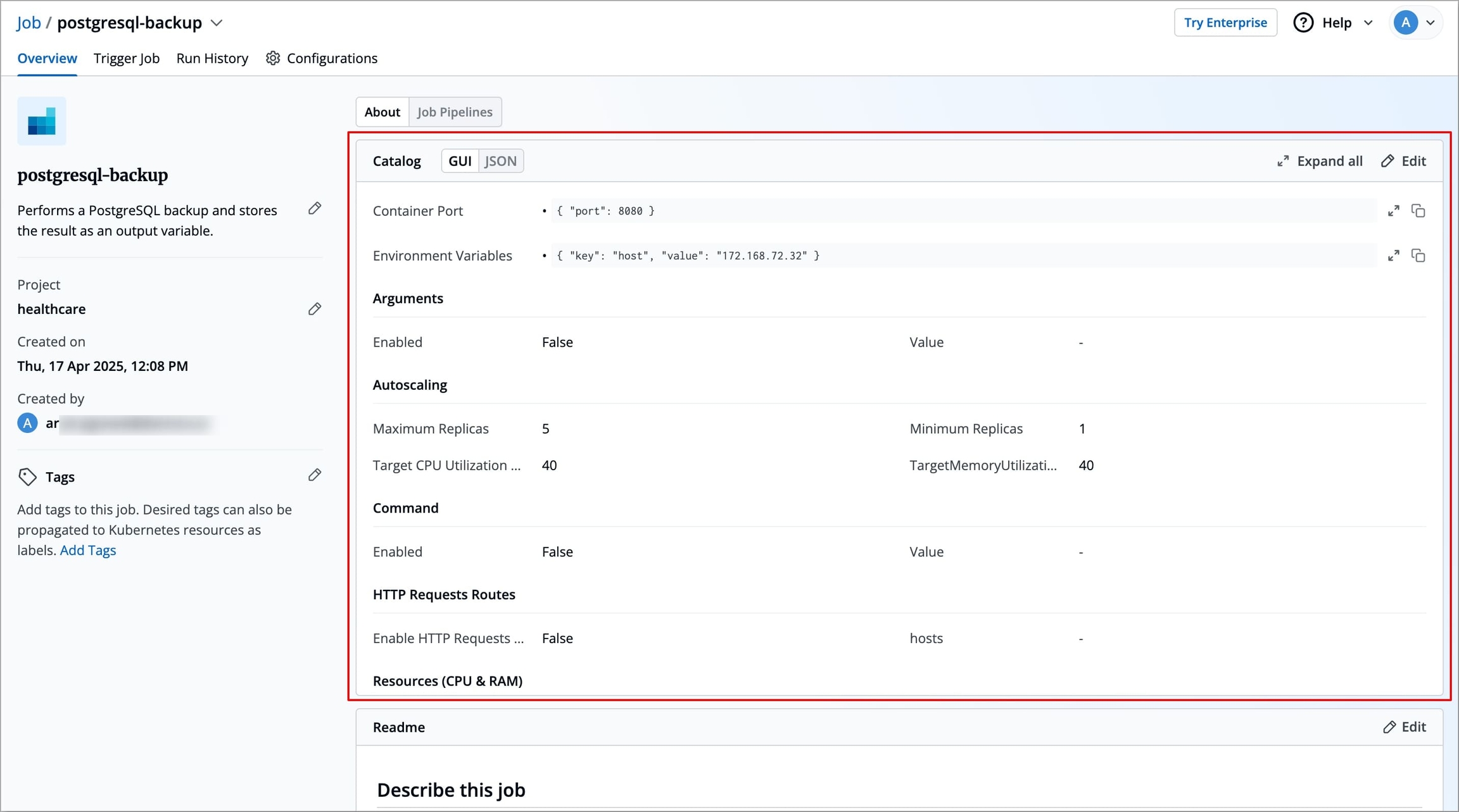

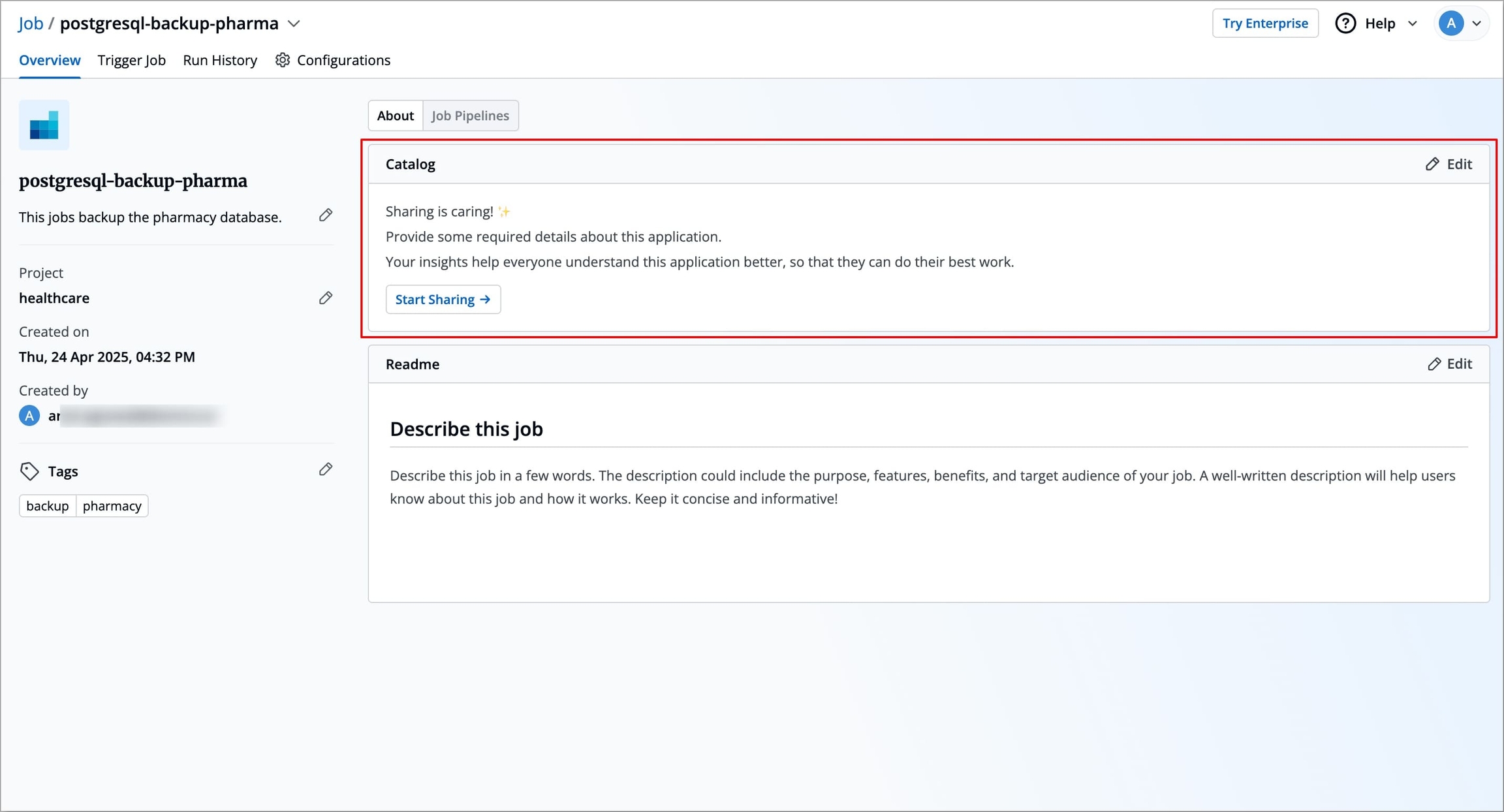

Figure 6: Catalog

You can use the Catalog framework to maintain information about your job, such as Environment Variables, Resources(CPU and RAM), service documentation, etc. This makes it easier for others to understand, manage, and use your job.

Super-Admins define a custom JSON schema that determines what fields are shown in the catalog form. This schema is specific to each resource type, such as Devtron jobs.

When you click the Edit icon, a form appears based on the defined schema. As a job owner, you can fill out fields like:

  • Container port (e.g., API contract, service documentation)

  • Environment Variables

  • Arguments

  • Resources(CPU and RAM)

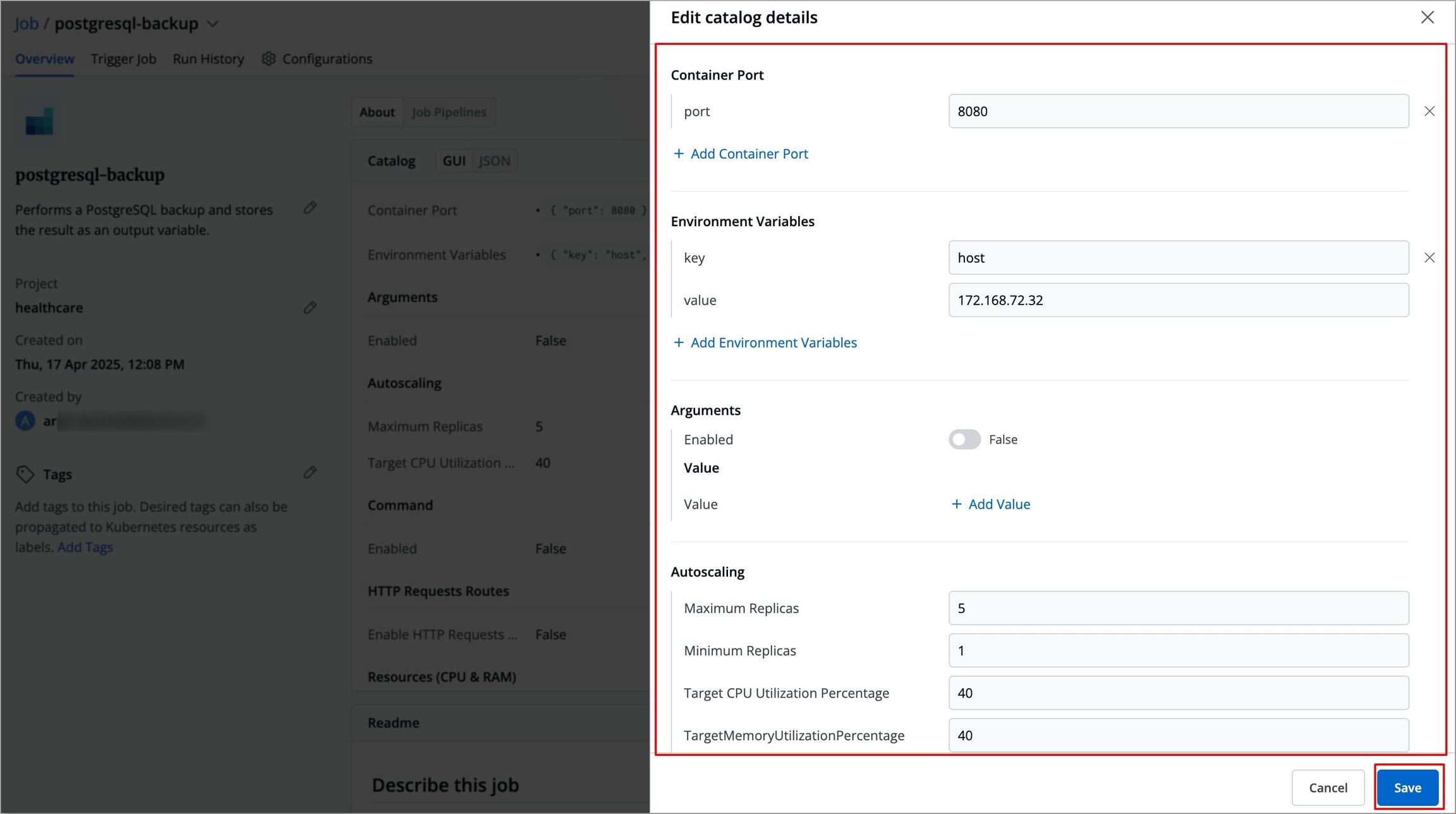

Figure 7: Editing Catalog

The structure and labels in the catalog form are entirely configurable by your platform team via JSON schema in Catalog Framework. Field names and sections may vary depending on how the schema was defined by your organization.

Once saved, this information is displayed in a readable format within the Catalog subsection and is accessible to all users who have permission to view the job.

Figure 8: Catalog Overview

Job Pipelines

The Job Pipelines section provides a detailed view of all job pipelines. For each job pipeline, it displays

Field Name
Description

Pipeline name

Name of the job pipeline.

Last Run Status

Displays the status of the most recent job execution

Run in environment

Displays the name of the environment in which the job is executed.

Last Run At

Displays how long ago the job was last triggered.

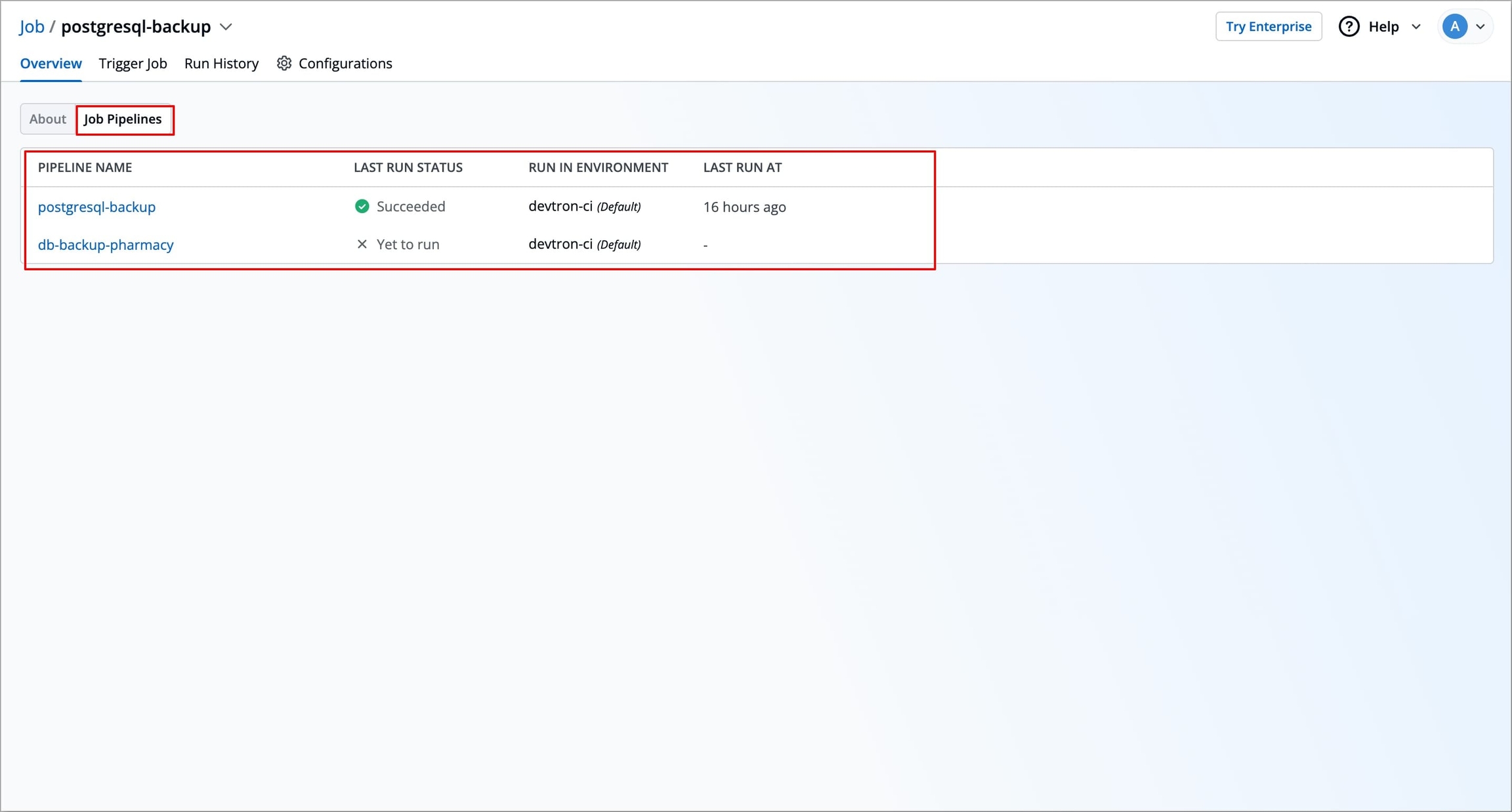

Figure 9: Job Pipelines
