Environment Overrides

The Environment Overrides section allows you to customize the ConfigMaps, and Secrets for different environments such as development, testing, staging, and production, and it even allows you to create additional ConfigMaps, and Secrets (if required) for different environments

How it Works ?

• When you add a job pipeline to a job's workflow, each environment configuration initially inherits the ConfigMap and Secret from the Base Configurations of the job.

• The Environment Overrides section lets you customize the ConfigMap and Secret per environment without affecting those of other environments. For example, in a non-production environment, you might allocate 100m CPU, while in production, you may increase it to 500m to handle higher traffic, or you can add additional ConfigMaps and Secrets for testing environments, while production uses only the base configurations needed to run the application

Environment Configurations Page

1. In your job, go to Configurations → Environment Overrides.

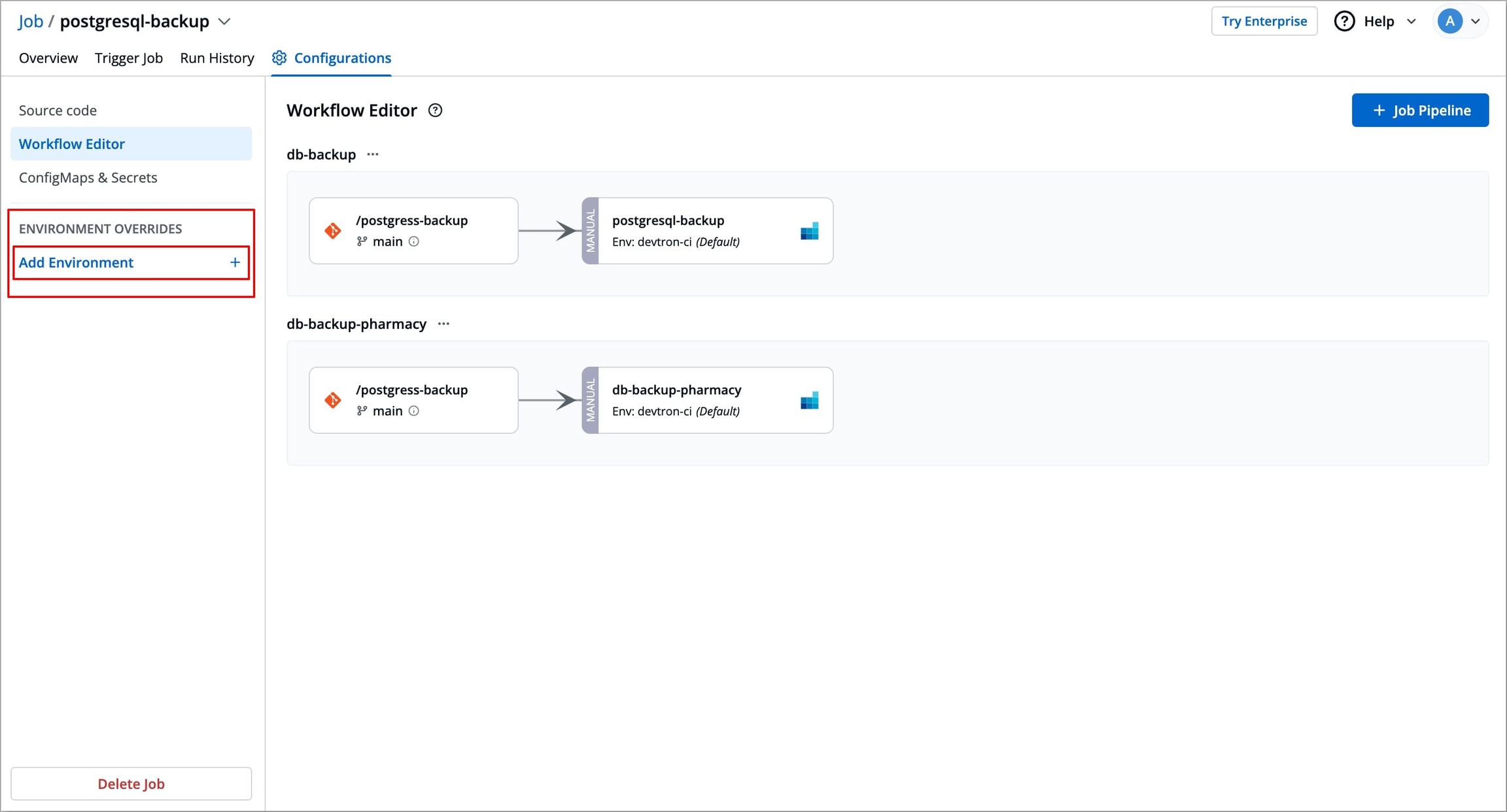

2. Click Add Environment and select an environment from the dropdown for which you want your configurations to be modified.


3. The environment will be added under Environment Override. If you wish, you can add more environments by clicking Add Environment.

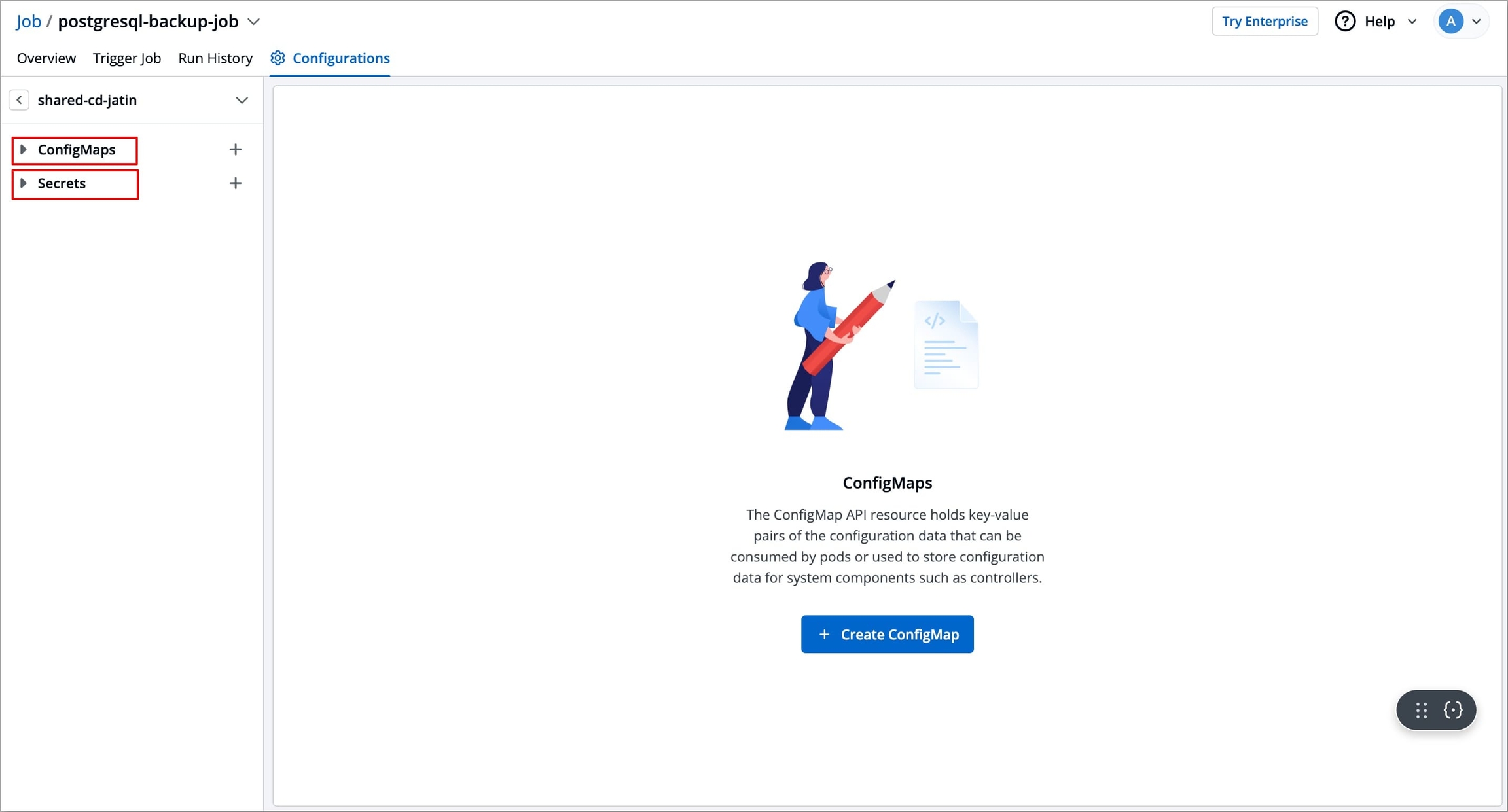

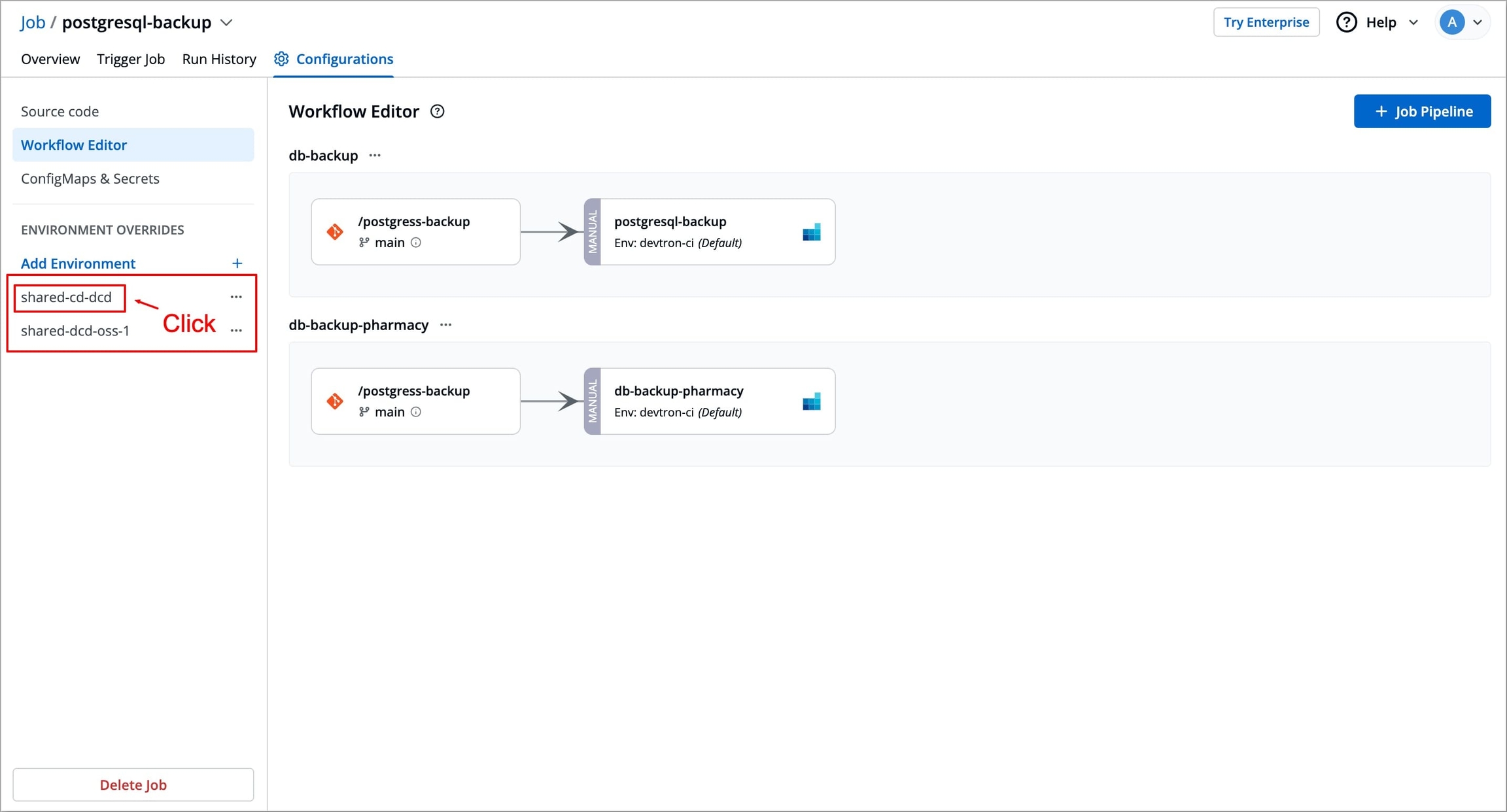

4. Click on the environment you have added under Environment Override, you will get the following options (similar to the ConfigMaps & Secrets page):

   • ConfigMaps

   • Secrets


5. You can now do one of the following:

   • Override the existing ConfigMap & Secrets which are being inherited from the base configurations specific to the selected environment.

   • Create additional ConfigMap & Secrets specific to the selected environment.

Let's see how to override the values of ConfigMaps & Secrets for the selected environment.

Override ConfigMaps & Secrets

If you want to have environment-specific ConfigMaps & Secrets, use Environment Override to override them for specific environments or create new environment-specific ConfigMaps & Secrets. At the time of execution, Devtron will pick environment-specific ConfigMaps & Secrets according to the environment in which the job is executed and pass them to your job pods.

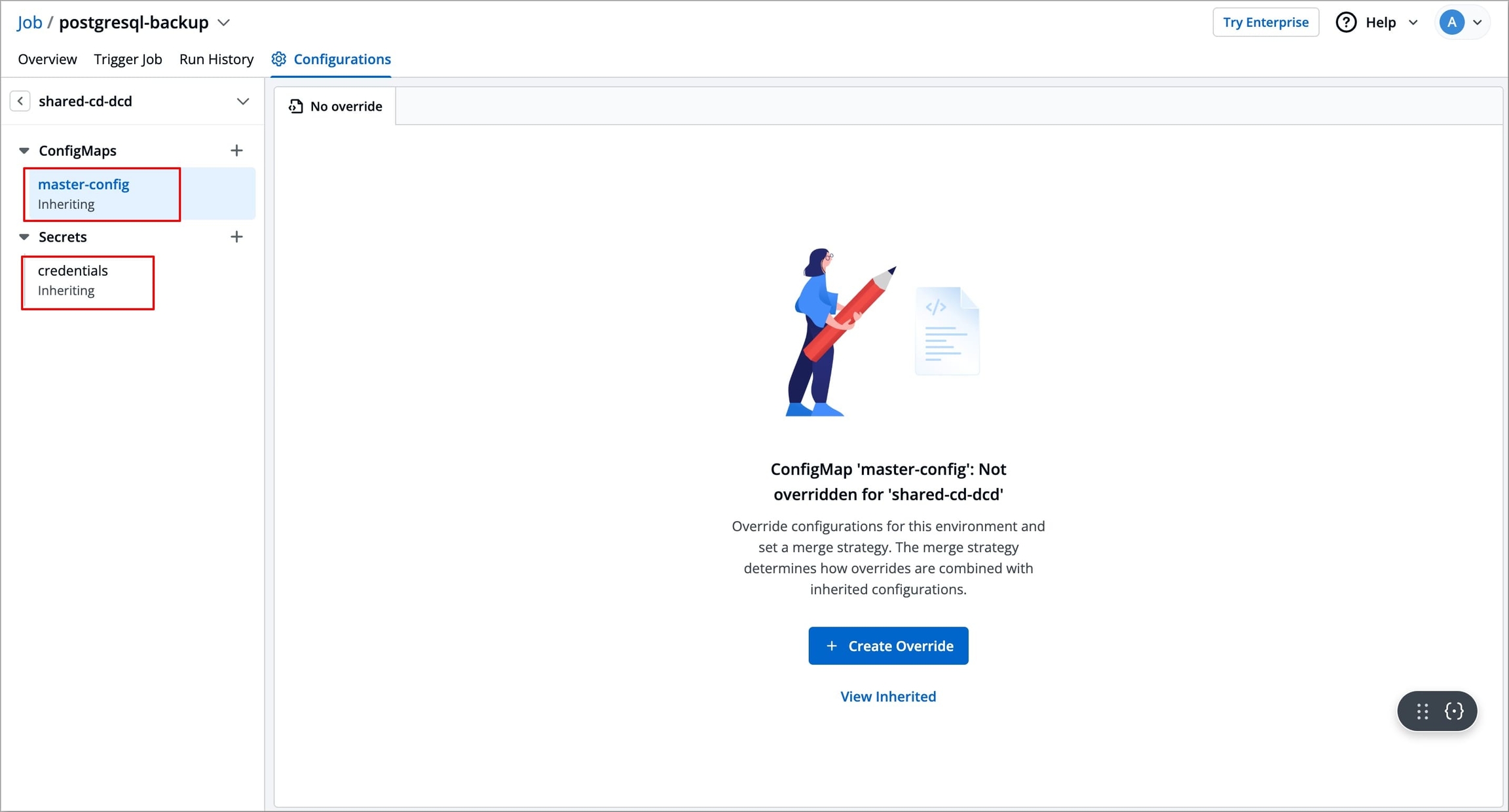

1. Under the selected environment, select the ConfigMap or Secret you wish to override; by default, the ConfigMap or Secret is inherited from the base configuration.

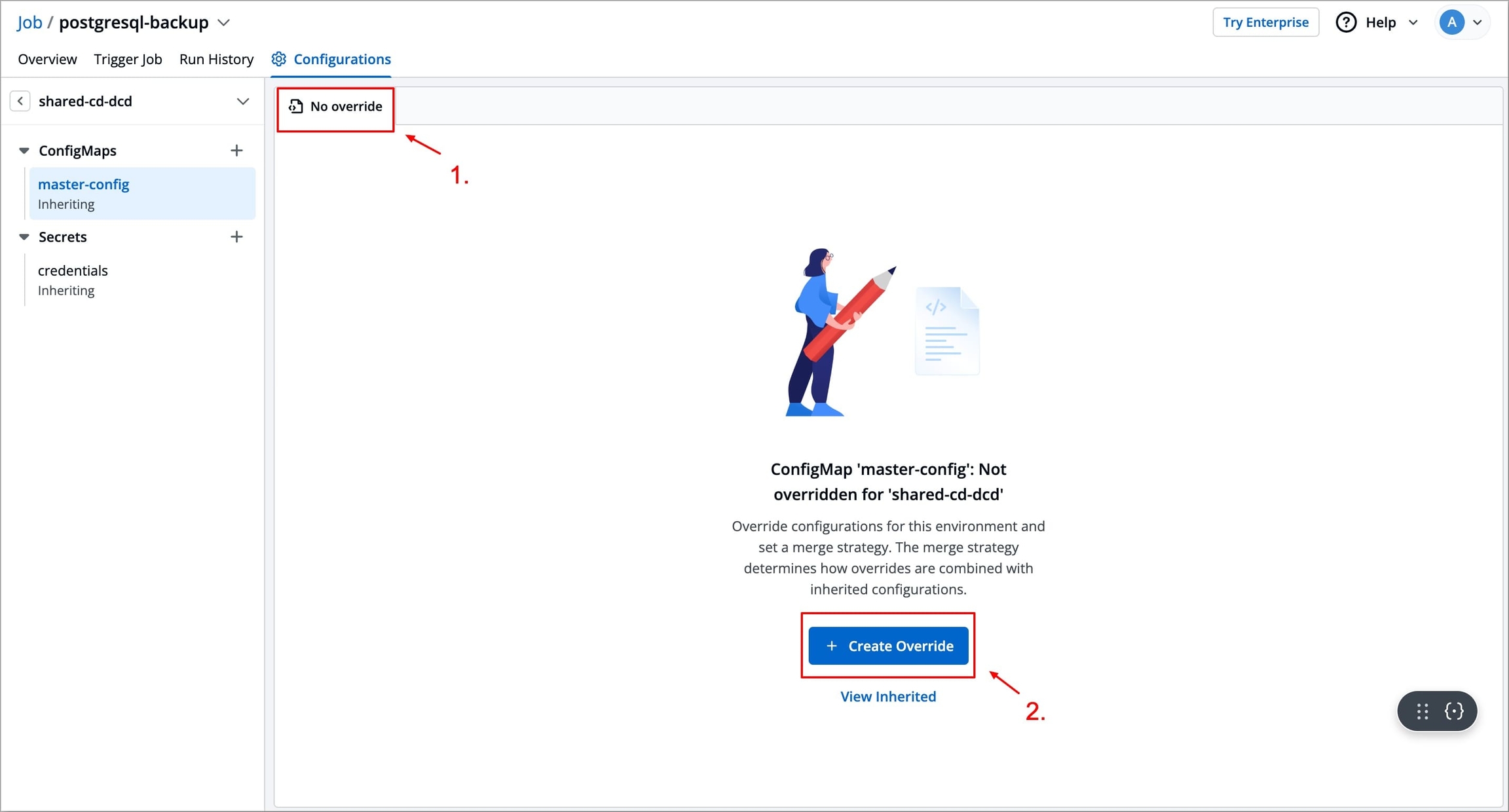

2. To create Override, select the No Override tab and click the Create Override button.


3. In the same tab (now labelled as Override), you can now change the configuration of your ConfigMap or Secret that will be specific to the selected environment.

   Note Except Name cannot be changed for ConfigMaps & Secrets that are inherited from the base configuration.


4. Override the data values using Replace merge strategy.

Replace Strategy

• The entire configuration is replaced with your new environment-specific settings.

• The replaced template will no longer depend on or inherit from the base configuration anymore.

• Best for a complete override.

Note: To know how to configure ConfigMaps & Secrets refer to the following sections:

• ConfigMaps

• Secrets

Create Additional ConfigMaps & Secrets

To create additional ConfigMaps & Secrets, follow the given steps

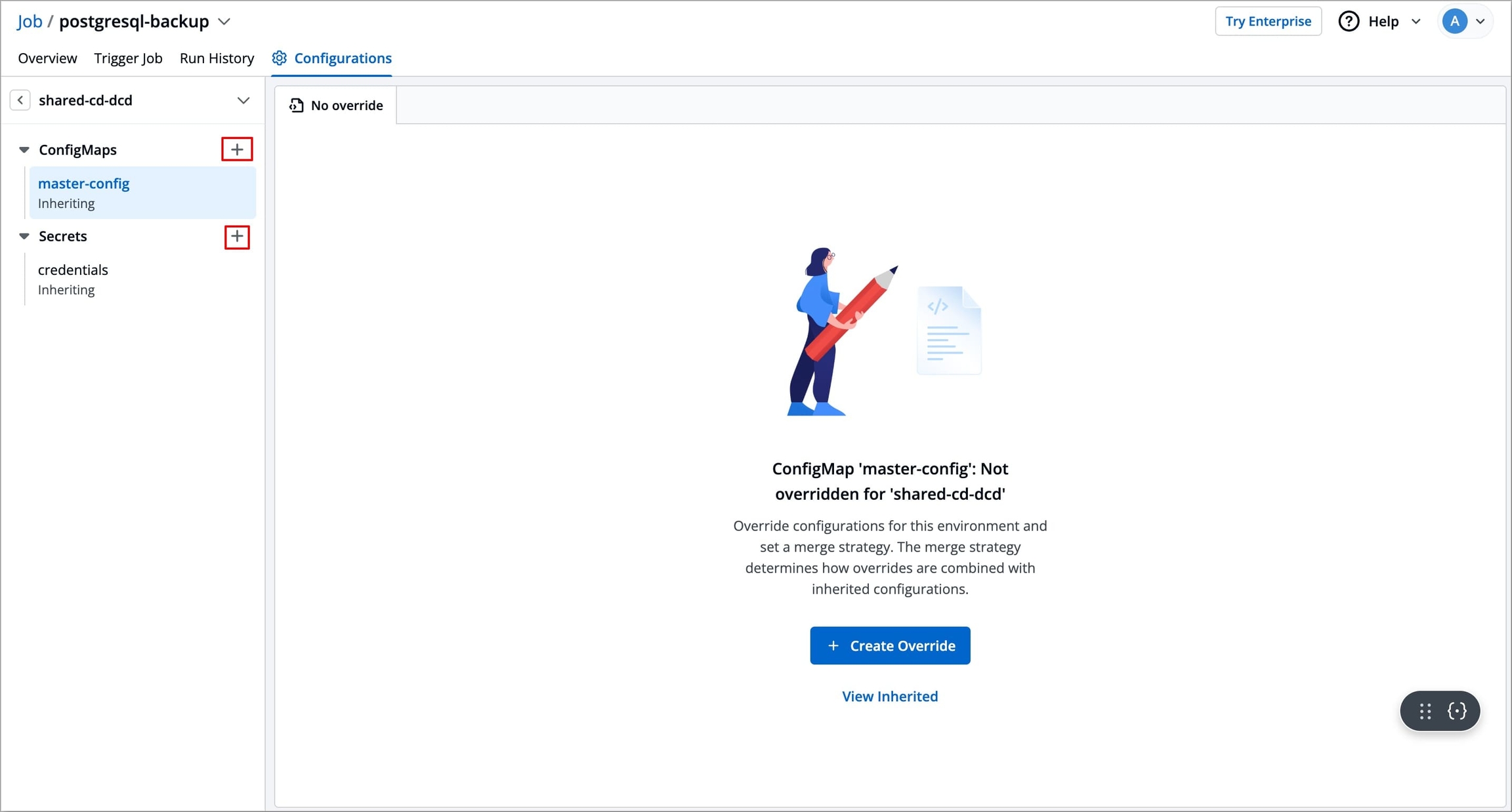

1. Under the selected environment, click the + button next to ConfigMap or Secret.

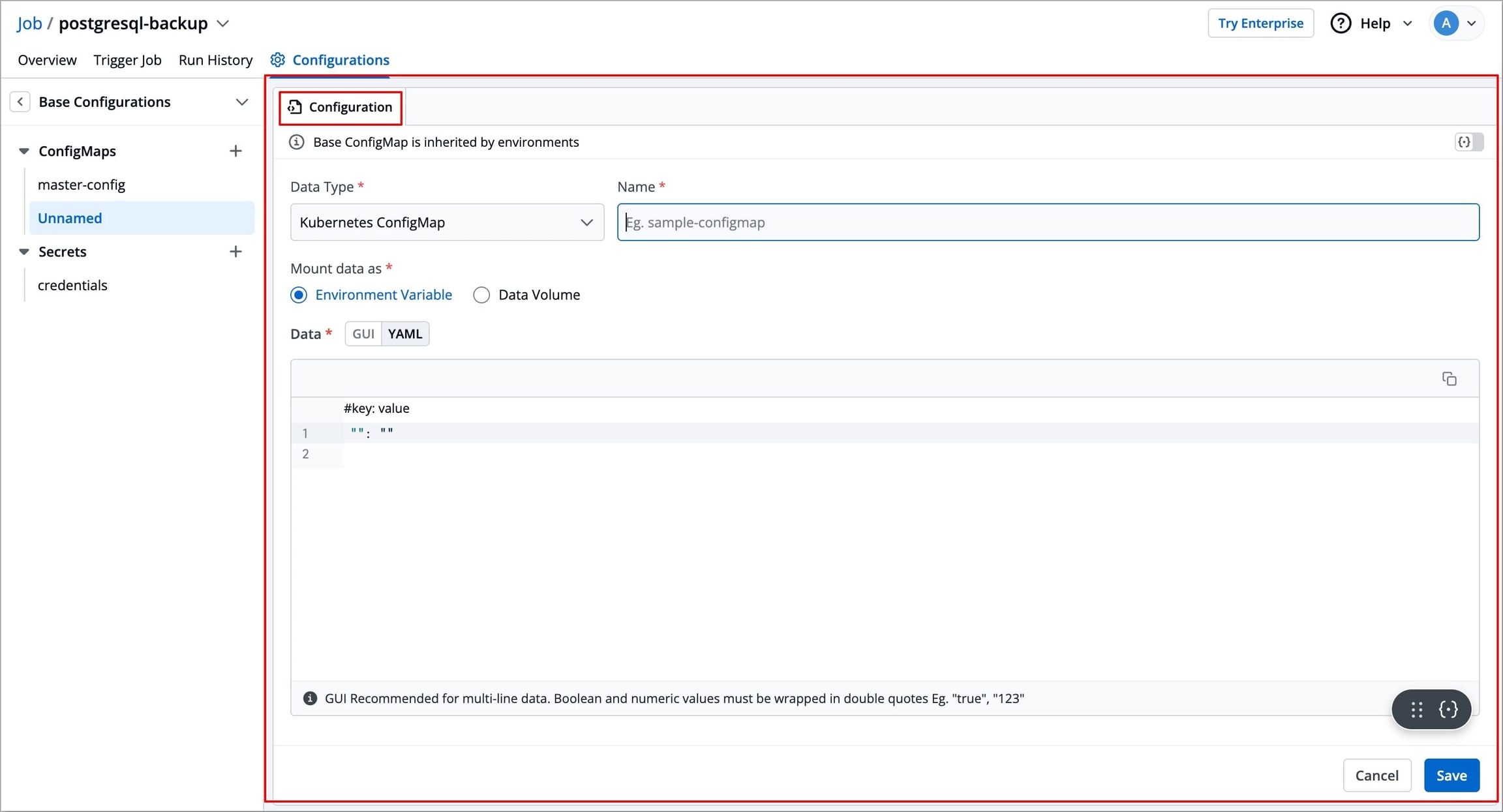

2. A configuration tab will open (which was previously named override) to add a new ConfigMap or Secret.

   Follow the guide below to create a ConfigMap or Secret:

   • Add ConfigMaps

   • Add Secrets

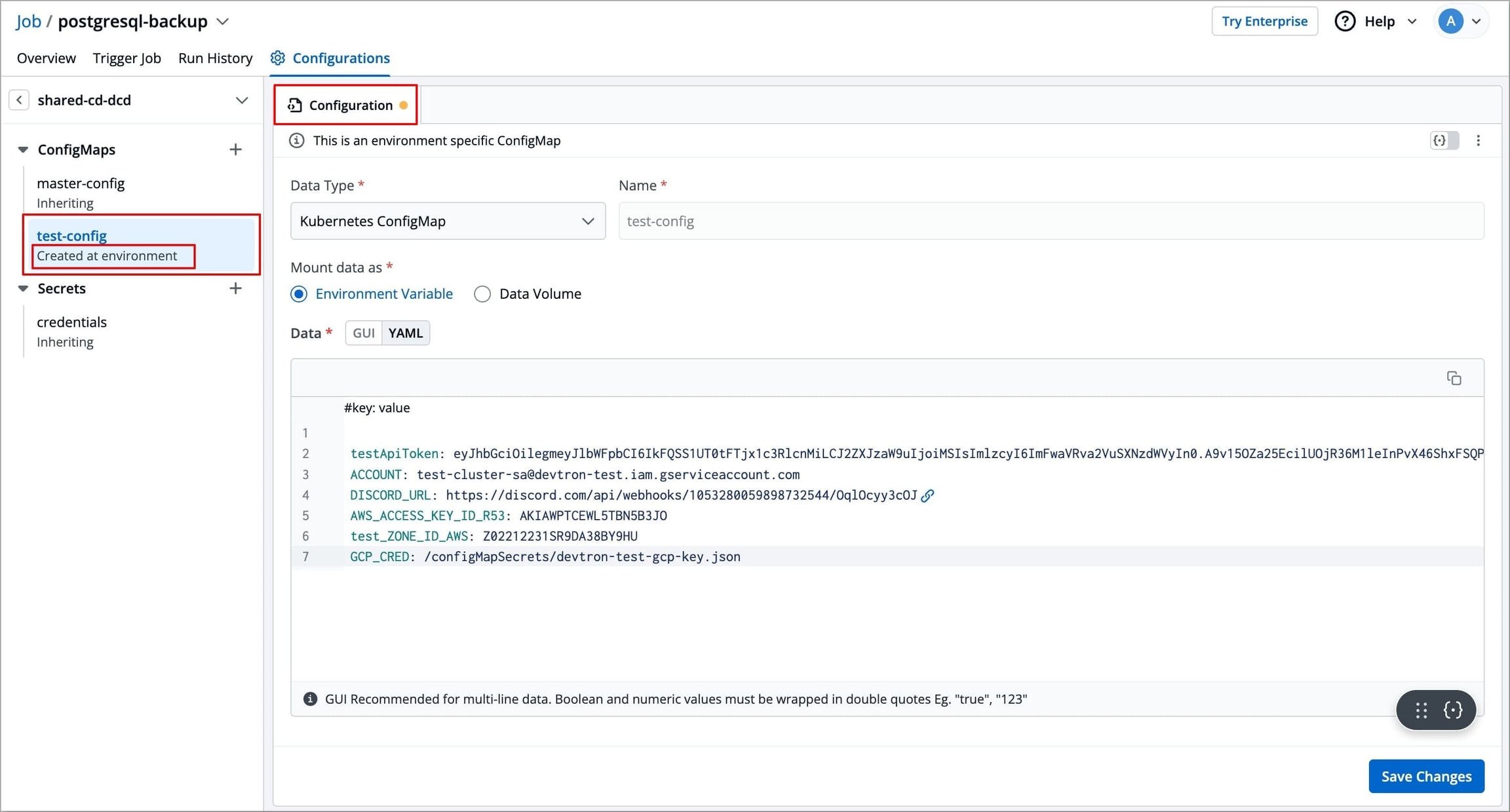

3. Once created, a new ConfigMap or Secret will be added with a label Created at environment under its name, in the left section under ConfigMap or Secret, respectively.

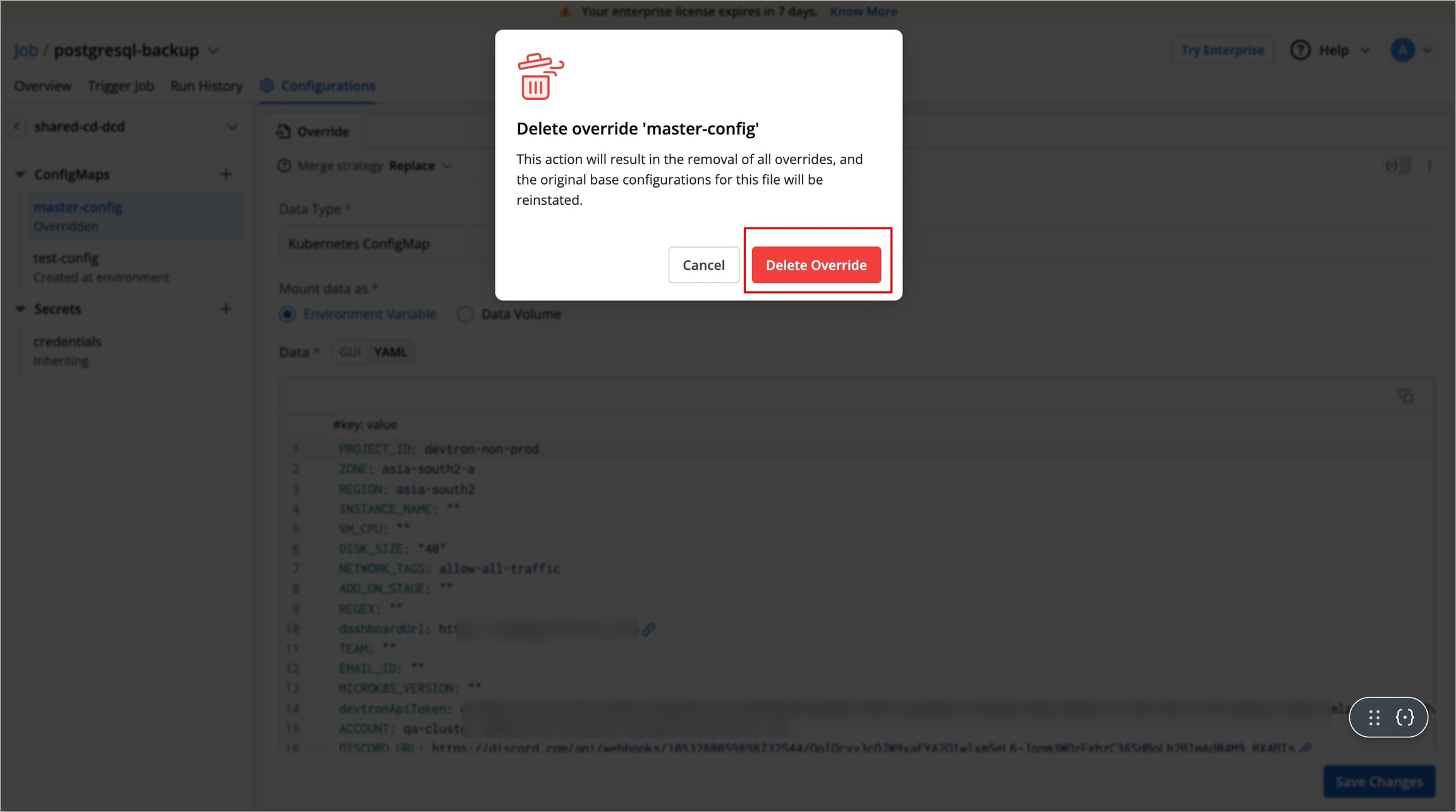

Delete Override

This action will discard the current overrides, and the base configuration file (in this example, the deployment template) will be restored back for the environment.

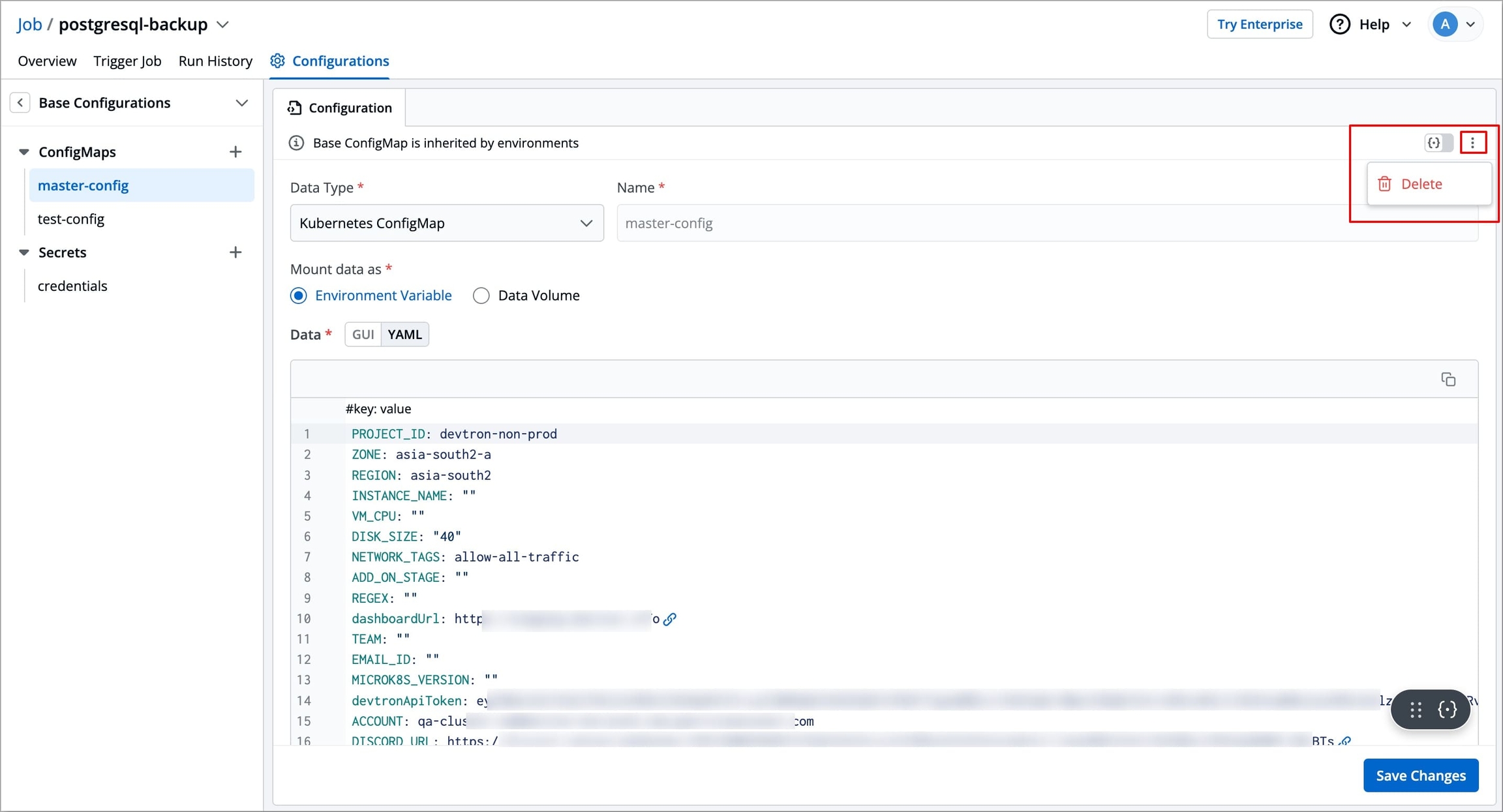

1. On the right side, click the kebab menu (3 vertical dots).

2. Click Delete Override.


3. Confirm the deletion in the dialog box.



After setting up Environment Overrides, you can refer to the Trigger Job section to trigger your job pipeline in different environments.
