  1. Global Configurations

Pull Image Digest

PreviousScoped VariablesNextTags Policy

Last updated 10 months ago

Was this helpful?

Introduction

Devtron offers the option to pull container images using digest. Refer to know the purpose it serves.

Though it can be enabled by an application-admin for a given CD Pipeline, Devtron also allows super-admins to enable pull image digest at environment level.

This helps in better governance and less repetitiveness if you wish to manage pull image digest for multiple applications across environments.

Who Can Perform This Action?

Users need to have super-admin permission to enable pull image digest at environment level.


Steps to Enable Pull Image Digest

From the left sidebar, go to Global Configurations → Pull Image Digest.

As a super-admin, you can decide whether you wish to enable pull image digest or .

For all Environments

This is for enabling pull image digest for deployment to all environments.

  1. Enable the toggle button next to Pull image digest for all existing & future environments.

    Figure 1: Enabling for all Env
  2. Click Save Changes.

    Figure 2: Saving Changes

For Specific Environments

This is for enabling pull image digest for specific environments. Therefore, only those applications deploying to selected environment(s) will have pull image digest enabled in its CD pipeline.

  1. Use the checkbox to choose one or more environments present within the list of clusters you have on Devtron.

  2. Click Save Changes.

Figure 3: Selecting Environments

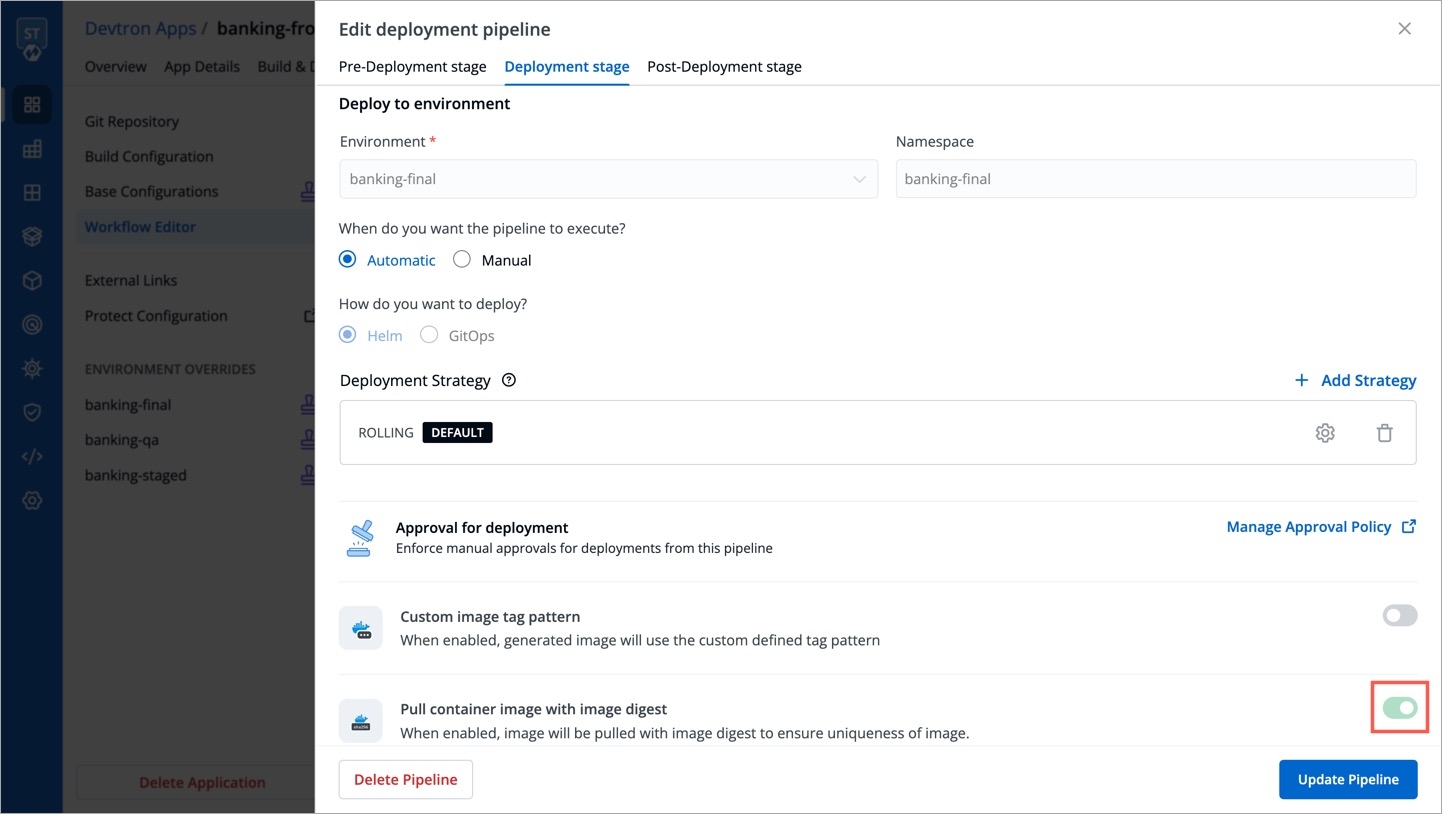

Once you enable pull image digest for a given environment in Global Configurations, users won't be able to modify the . The toggle button would appear disabled for that environment as shown below.

Figure 4: Non-editable Option
for all environments
for specific environments
image digest setting in the CD pipeline
CD Pipeline - Image Digest
