SonarQube v1.1.0
Last updated
Last updated
Configuring Sonarqube-v1.1.0
in pre-build or post build task enhances your workflow with Continuous Code Quality & Code Security.
Prerequisite: Make sure you have set up an account in Sonarqube
or get the API keys from an admin.

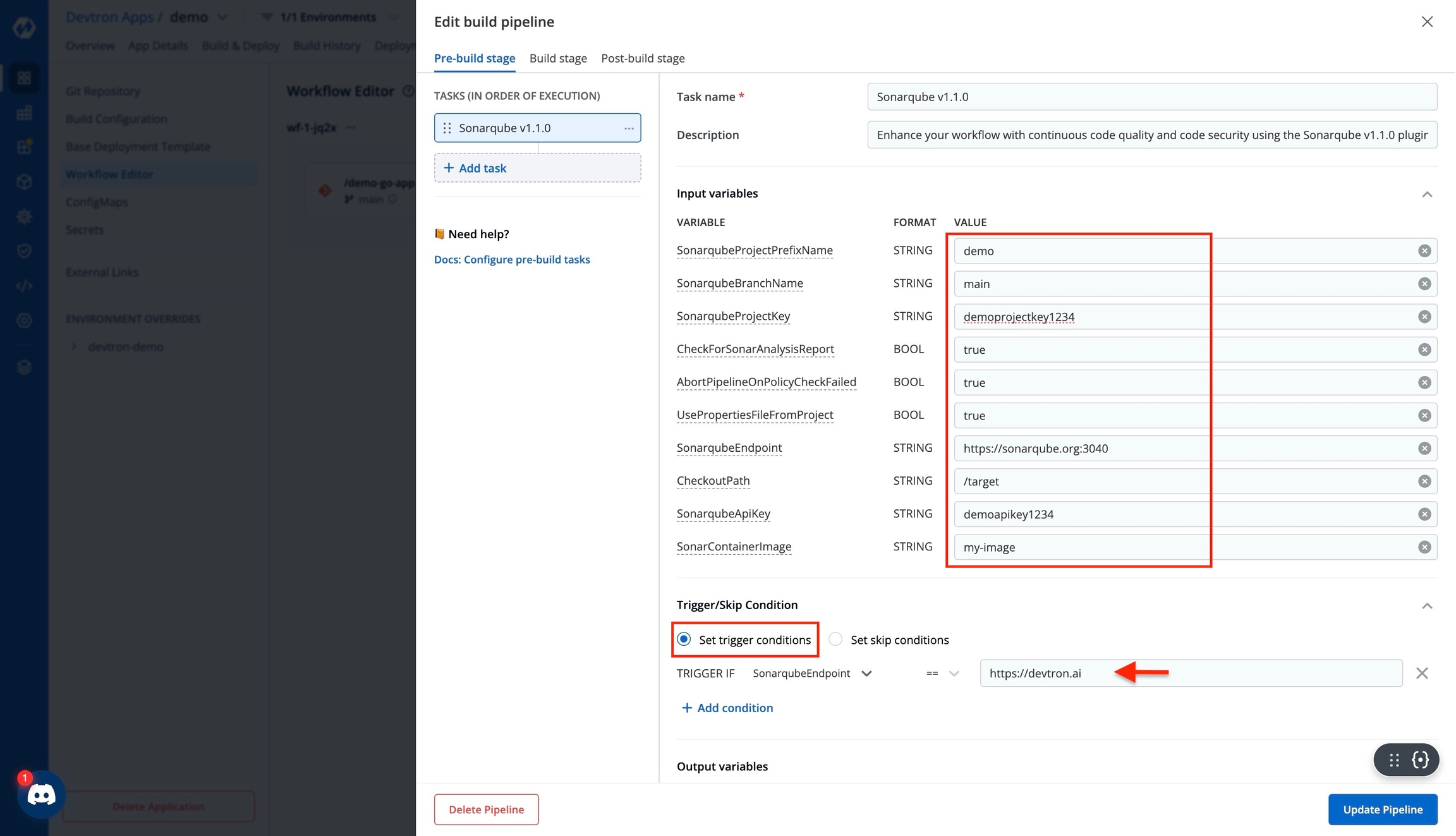

On the Edit build pipeline page, select the Pre-Build Stage (or Post-Build Stage).
Click + Add task.
Select Sonarqube v1.1.0 from PRESET PLUGINS.
Enter a relevant name in the Task name
field. It is a mandatory field.
Enter a descriptive message for the task in the Description
field. It is an optional field.
Provide a value for the input variable. Note: The value may be any of the values from the previous build stages, a global variable, or a custom value.
Trigger/Skip Condition
refers to a conditional statement to execute or skip the task. You can select either:
Set trigger conditions
or
Set skip conditions
Pass/Fail Condition
refers to a conditional statement to pass or fail the Pre-Build Stage (or Post-Build Stage). You can select either:
Set pass conditions
or
Set failure conditions
Click Update Pipeline.
Variable | Format | Description |
---|---|---|
SonarqubeProjectPrefixName
String
This is the SonarQube project prefix name. If not provided, the prefix name is automatically generated.
SonarqubeBranchName
String
Branch name to be used to send the scanned result on sonarqube project.
SonarqubeProjectKey
String
Project key of SonarQube account
CheckForSonarAnalysisReport
Bool
Boolean value - true or false. Set true to poll for generated report from sonarqube.
AbortPipelineOnPolicyCheckFailed
Bool
Boolean value - true or false. Set true to abort on report check failed.
UsePropertiesFileFromProject
Bool
Boolean value - true or false. Set true to use source code sonar-properties file.
SonarqubeEndpoint
String
API endpoint of SonarQube account.
CheckoutPath
String
Checkout path of Git material.
SonarqubeApiKey
String
API key of SonarQube account
SonarContainerImage
String
Container Image that will be used for sonar scanning purpose.
