Pre-Build/Post-Build Stages

The CI pipeline includes Pre and Post-build steps to validate and introduce checkpoints in the build process. The pre/post plugins allow you to execute some standard tasks, such as Code analysis, Load testing, Security scanning etc. You can build custom pre-build/post-build tasks or select one of the standard preset plugins provided by Devtron.
Preset plugin is an API resource which you can add within the CI build environment. By integrating the preset plugin in your application, it helps your development cycle to keep track of finding bugs, code duplication, code complexity, load testing, security scanning etc. You can analyze your code easily.
Devtron CI pipeline includes the following build stages:
  • Pre-Build Stage: The tasks in this stage run before the image is built.
  • Build Stage: In this stage, the build is triggered from the source code (container image) that you provide.
  • Post-Build Stage: The tasks in this stage are triggered once the build is complete.

Before you begin

Make sure you have CI build pipeline before you start configuring Pre-Build or Post-Build tasks.

Configuring Pre/Post-build Tasks

Each Pre/Post-build stage is executed as a series of events called tasks and includes custom scripts. You can create one or more tasks that are dependent on one another for execution. In other words, the output variable of one task can be used as an input for the next task to build a CI runner. The tasks will run following the execution order.
The tasks can be re-arranged by drag-and-drop; however, the order of passing the variables must be followed.
You can create a task either by selecting one of the available preset plugins or by creating a custom script.
Stage
Task
Pre-Build/Post-Build
  1. 1.
    Create a task using one of the Preset Plugins integrated in Devtron:
  2. 2.
    Create a task from Execute Custom script which you can customize your script with:

Creating Pre/Post-build Tasks

Lets take Codacy as an example and configure it in the Pre-Build stage in the CI pipeline for finding bugs, detecting dependency vulnerabilities, and enforcing code standards.
  • Go to the Applications and select your application from the Devtron Apps tabs.
  • Go to the App Configuration tab, click Workflow Editor.
  • Select the build pipeline for configuring the pre/post-build tasks.

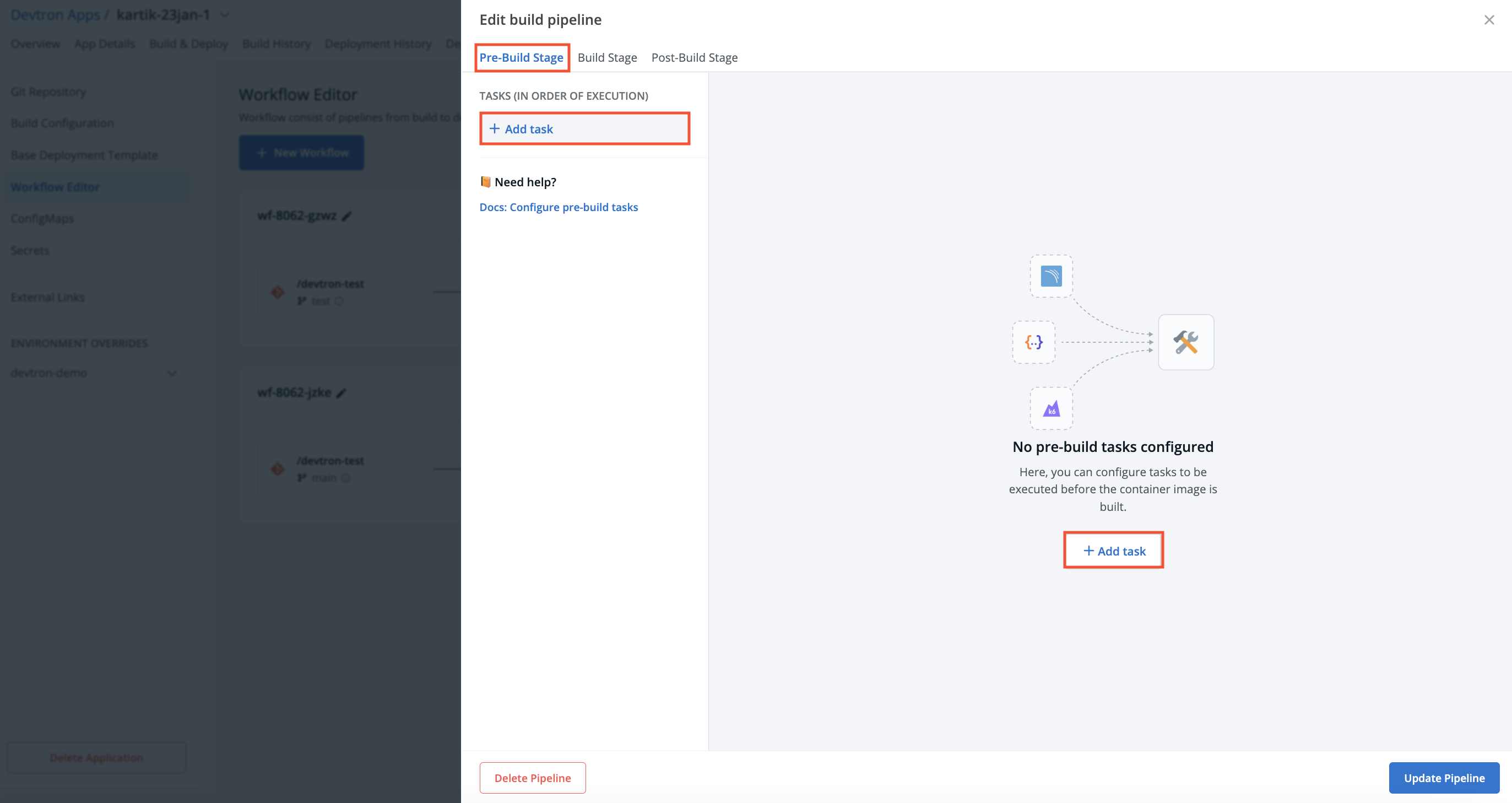

  • On the Edit build pipeline, in the Pre-Build Stage, click + Add task.
  • Select Codacy from PRESET PLUGINS.
  • Enter a relevant name or codacy in the Task name field. It is a mandatory field.
  • Enter a descriptive message for the task in the Description field. It is an optional field. Note: The description is available by default.
  • In the Input Variables, provide the information in the following fields:
Variable
Format
Description
CodacyEndpoint
String
API endpoint for Codacy.
GitProvider
String
Git provider for the scanning.
CodacyApiToken
String
API token for Codacy. If it is provided, it will be used, otherwise it will be picked from Global secret (CODACY_API_TOKEN).
Organisation
String
Your Organisation for Codacy.
RepoName
String
Your Repository name.
Branch
String
Your branch name.
  • In Trigger/Skip Condition, set the trigger conditions to execute a task or Set skip conditions. As an exmple: CodacyEndpoint equal to https://app.codacy.com. Note: You can set more than one condition.
  • In Pass/Failure Condition set the conditions to execute pass or fail of your build. As an example: Pass if number of issues equal to zero. Note: You can set more than one condition.
  • Click Update Pipeline.
  • Go to the Build & Deploy, click the build pipiline and start your build.
  • Click Details on the build pipeline and you can view the details on the Logs.

Preset plugins

K6 Load Testing

K6 is an open-source tool and cloud service that makes load testing easy for developers and QA engineers.
Prerequisite: Make sure you have set up an account in k6.io or get the API keys from an admin.
  1. 1.
    On the Edit build pipeline page, select the Pre-Build Stage (or Post-Build Stage).
  2. 2.
    Click + Add task.
  3. 3.
    Select K6 Load Testing from PRESET PLUGINS.
  • Enter a relevant name in the Task name field. It is a mandatory field.
  • Enter a descriptive message for the task in the Description field. It is an optional field.
  • Provide a value for the input variable. Note: The value may be any of the values from the previous build stages, a global variable, or a custom value.
Variable
Format
Description
RelativePathToScript
String
Checkout path + script path along with script name.
PrometheusUsername
String
Username of Prometheus account.
PrometheusApiKey
String
API key of Prometheus account.
PrometheusRemoteWriteEndpoint
String
Remote write endpoint of Prometheus account.
OutputType
String
Log or Prometheus
  • Trigger/Skip Condition refers to a conditional statement to execute or skip the task. You can select either:
    • Set trigger conditions or
    • Set skip conditions
  • Click Update Pipeline.

Sonarqube

Configuring Sonarqube in pre-build or post build task enhances your workflow with Continuous Code Quality & Code Security.
Prerequisite: Make sure you have set up an account in Sonarqube or get the API keys from an admin.
  1. 1.
    On the Edit build pipeline page, select the Pre-Build Stage (or Post-Build Stage).
  2. 2.
    Click + Add task.
  3. 3.
    Select Sonarqube from PRESET PLUGINS.
  • Enter a relevant name in the Task name field. It is a mandatory field.
  • Enter a descriptive message for the task in the Description field. It is an optional field.
  • Provide a value for the input variable. Note: The value may be any of the values from the previous build stages, a global variable, or a custom value.
Variable
Format
Description
SonarqubeProjectKey
String
Project key of sonarqube account.
SonarqubeApiKey
String
API key of Sonarqube account.
SonarqubeEndpoint
String
API endpoint of Sonarqube account.
CheckoutPath
String
Checkout path of Git material.
UsePropertiesFileFromProject
Boolean
Enter either true or false accordingly whether you want the poll to generate report or not.
CheckForSonarAnalysisReport
Boolean
Enter either true or false accordingly whether you want the poll to generate report or not.
AbortPipelineOnPolicyCheckFailed
Boolean
Enter either true or false accordingly whether you want to check if the policy fails or not.
  • Trigger/Skip Condition refers to a conditional statement to execute or skip the task. You can select either:
    • Set trigger conditions or
    • Set skip conditions
  • Click Update Pipeline.

Dependency Track for Python

Configuring Dependency Track for Python in pre-build or post build task creates a bill of materials from Python projects and environments and uploads it to D-track for Component Analysis to identify and reduce risk in the software supply chain.
Prerequisite: Make sure you have set up an account in dependency track or get the API keys from an admin.
  1. 1.
    On the Edit build pipeline page, select the Pre-Build Stage (or Post-Build Stage).
  2. 2.
    Click + Add task.
  3. 3.
    Select Dependency track for Python from PRESET PLUGINS.
  • Enter a relevant name in the Task name field. It is a mandatory field.
  • Enter a descriptive message for the task in the Description field. It is an optional field.
  • Provide a value for the input variable. Note: The value may be any of the values from the previous build stages, a global variable, or a custom value.
Variable
Format
Description
ProjectManifestType
String
Type of your Python project manifest which is used to build cycloneDx Software Bill of Materials (SBOM). E.g., PIP, Poetry etc.
RelativePathToPoetryLock
String
Path to your poetry.lock file inside your project.
RelativePathToPipfile
String
Path to your Pipfile.lock file inside your project.
RelativePathToRequirementTxt
String
Path to your requirements.txt file inside your project.
DTrackEndpoint
String
API endpoint of your dependency track account.
DTrackProjectName
String
Name of your dependency track project.
DTrackProjectVersion
String
Version of dependency track project.
DTrackApiKey
String
API key of your dependency track account.
CheckoutPath
String
Checkout path of Git material.
  • Trigger/Skip Condition refers to a conditional statement to execute or skip the task. You can select either:
    • Set trigger conditions or
    • Set skip conditions
  • Click Update Pipeline.

Dependency Track for NodeJs

Configuring Dependency Track for NodeJs in pre-build or post build task creates a bill of materials from NodeJs projects and environments and uploads it to D-track for Component Analysis to identify and reduce risk in the software supply chain.
Prerequisite: Make sure you have set up an account in dependency track or get the API keys from an admin.
  1. 1.
    On the Edit build pipeline page, select the Pre-Build Stage (or Post-Build Stage).
  2. 2.
    Click + Add task.
  3. 3.
    Select Dependency track for NodeJs from PRESET PLUGINS.
  • Enter a relevant name in the Task name field. It is a mandatory field.
  • Enter a descriptive message for the task in the Description field. It is an optional field.
  • Provide a value for the input variable. Note: The value may be any of the values from the previous build stages, a global variable, or a custom value.
Variable
Format
Description
DTrackEndpoint
String
API endpoint of your dependency track account.
DTrackProjectName
String
Name of your dependency track project.
DTrackProjectVersion
String
Version of dependency track project.
DTrackApiKey
String
API key of your dependency track account.
CheckoutPath
String
Checkout path of Git material.
  • Trigger/Skip Condition refers to a conditional statement to execute or skip the task. You can select either:
    • Set trigger conditions or
    • Set skip conditions
  • Click Update Pipeline.

Dependency Track for Maven & Gradle

Configuring Dependency Track for NodeJs in pre-build or post build task creates a bill of materials from Maven & Gradle projects and environments and uploads it to D-track for Component Analysis to identify and reduce risk in the software supply chain.
Prerequisite: Make sure you have set up an account in dependency track or get the API keys from an admin.
  1. 1.
    On the Edit build pipeline page, select the Pre-Build Stage (or Post-Build Stage).
  2. 2.
    Click + Add task.
  3. 3.
    Select Dependency track for Maven & Gradle from PRESET PLUGINS.
  • Enter a relevant name in the Task name field. It is a mandatory field.
  • Enter a descriptive message for the task in the Description field. It is an optional field.
  • Provide a value for the input variable. Note: The value may be any of the values from the previous build stages, a global variable, or a custom value.
Variable
Format
Description
BuildToolType
String
Type of build tool your project is using. E.g., Maven, or Gradle.
DTrackEndpoint
String
API endpoint of your dependency track account.
DTrackProjectName
String
Name of your dependency track project.
DTrackProjectVersion
String
Version of dependency track project.
DTrackApiKey
String
API key of your dependency track account.
CheckoutPath
String
Checkout path of Git material.
  • Trigger/Skip Condition refers to a conditional statement to execute or skip the task. You can select either:
    • Set trigger conditions or
    • Set skip conditions
  • Click Update Pipeline.

Semgrep

Semgrep is a fast, open source, static analysis engine for finding bugs, detecting dependency vulnerabilities, and enforcing code standards.
Prerequisite: Make sure you have set up an account in Semgrep or get the API keys from an admin.
  1. 1.
    On the Edit build pipeline page, select the Pre-Build Stage (or Post-Build Stage).
  2. 2.
    Click + Add task.
  3. 3.
    Select Semgrep from PRESET PLUGINS.
  • Enter a relevant name in the Task name field. It is a mandatory field.
  • Enter a descriptive message for the task in the Description field. It is an optional field.
  • Provide a value for the input variable. Note: The value may be any of the values from the previous build stages, a global variable, or a custom value.
Variable
Format
Description
SemgrepAppToken
String
App token of Semgrep. If it is provided, this token will be used, otherwise it will be picked from Global Secret.
PrefixAppNameInSemgrepBranchName
Bool
Enter either true or false accordingly whether you want app name to be reflected with a branch name. If it is true, it will add app name with branch name. E.g., {SemgrepAppName}-{branchName}
UseCommitAsSemgrepBranchName
Bool
Enter either true or false accordingly whether you want app name to be reflected with commit hash. If it is true, it will add app name with commit hash. E.g., {SemgrepAppName}-{CommitHash}.
SemgrepAppName
String
App name for Semgrep. If it is provided, and PrefixAppNameInSemgrepBranchName is true, then this will be prefixed with branch name/commit hash.
ExtraCommandArguments
String
Extra command arguments for Semgrep CI command. E.g., Input: --json --dry-run.
  • Trigger/Skip Condition refers to a conditional statement to execute or skip the task. You can select either:
    • Set trigger conditions or
    • Set skip conditions
  • Click Update Pipeline.

Codacy

Codacy is an automated code analysis/quality tool that helps developers to ship better software in a faster manner.
Prerequisite: Make sure you have set up an account in Codacy or get the API keys from an admin.
  1. 1.
    On the Edit build pipeline page, select the Pre-Build Stage (or Post-Build Stage).
  2. 2.
    Click + Add task.
  3. 3.
    Select Codacy from PRESET PLUGINS.
  • Enter a relevant name in the Task name field. It is a mandatory field.
  • Enter a descriptive message for the task in the Description field. It is an optional field.
  • Provide a value for the input variable. Note: The value may be any of the values from the previous build stages, a global variable, or a custom value.
Variable
Format
Description
CodacyEndpoint
String
API endpoint for Codacy.
GitProvider
String
Git provider for the scanning.
CodacyApiToken
String
API token for Codacy. If it is provided, it will be used, otherwise it will be picked from Global secret (CODACY_API_TOKEN).
Organisation
String
Your Organisation for Codacy.
RepoName
String
Your Repository name.
Branch
String
Your branch name.
  • Trigger/Skip Condition refers to a conditional statement to execute or skip the task. You can select either:
    • Set trigger conditions or
    • Set skip conditions
  • Pass/Failure Condition refers to conditions to execute pass or fail of your build. You can select either:
    • Set pass conditions or
    • Set failure conditions
  • Click Update Pipeline.

Execute custom script

  1. 1.
    On the Edit build pipeline screen, select the Pre-build stage.
  2. 2.
    Select + Add task.
  3. 3.
    Select Execute custom script.
The task type of the custom script may be a Shell or a Container image.

Custom script - Shell

  • Select the Task type as Shell.
Consider an example that creates a Shell task to stop the build if the database name is not "mysql". The script takes 2 input variables, one is a global variable (DOCKER_IAMGE), and the other is a custom variable (DB_NAME) with a value "mysql". The task triggers only if the database name matches "mysql". If the trigger condition fails, this Pre-build task will be skipped and the build process will start. The variable DB_NAME is declared as an output variable that will be available as an input variable for the next task. The task fails if DB_NAME is not equal to "mysql".
Custom script - Shell
Field name
Required/Optional
Field description
Task name
Required
A relevant name for the task
Description
Optional
A descriptive message for the task
Task type
Optional
Shell: Custom shell script goes here
Input variables
Optional
  • Variable name: Alphanumeric chars and (_) only
  • Source or input value: The variable's value can be global, output from the previous task, or a custom value. Accepted data types include: STRING | BOOL | NUMBER | DATE
  • Description: Relevant message to describe the variable.
Trigger/Skip condition
Optional
A conditional statement to execute or skip the task
Script
Required
Custom script for the Pre/Post-build tasks
Output directory path
Optional
Output variables
Optional
Environment variables that are passed as input variables for the next task.
  • Pass/Failure Condition (Optional): Conditional statements to determine the success/failure of the task. A failed condition stops the execution of the next task and/or build process
  • Select Update Pipeline.
Here is a screenshot with the failure message from the task:
Pre-Build task failure

Custom script - Container image

  • Select the Task type as Container image.
This example creates a Pre-build task from a container image. The output variable from the previous task is available as an input variable.
Custom script - Container image
Field name
Required/Optional
Field description
Task name
Required
A relevant name for the task
Description
Optional
A descriptive message for the task
Task type
Optional
Container image
Input variables
Optional
  • Variable name: Alphanumeric chars and (_) only
  • Source or input value: The variable's value can be global, output from the previous task, or a custom value Accepted data types include: STRING | BOOL | NUMBER | DATE
  • Description: Relevant message to describe the variable
Trigger/Skip condition
Optional
A conditional statement to execute or skip the task
Container image
Required
Select an image from the drop-down list or enter a custom value in the format <image>:<tag>
Mount custom code
Optional
Enable to mount the custom code in the container. Enter the script in the box below.
  • Mount above code at (required): Path where the code should be mounted
Command
Optional
The command to be executed inside the container
Args
Optional
The arguments to be passed to the command mentioned in the previous field
Port mapping
Optional
The port number on which the container listens. The port number exposes the container to outside services
Mount code to container
Optional
Mounts the source code inside the container. Default is "No". If set to "Yes", enter the path
Mount directory from host
Optional
Mount any directory from the host into the container. This can be used to mount code or even output directories
Output directory path
Optional
Directory path for the script output files such as logs, errors, etc.
  • Select Update Pipeline.

What's next

Trigger the CI pipeline
