Cluster And Environments
The Global configuration provides a feature of Cluster & Environment in which you can add your Kubernetes clusters and environment.

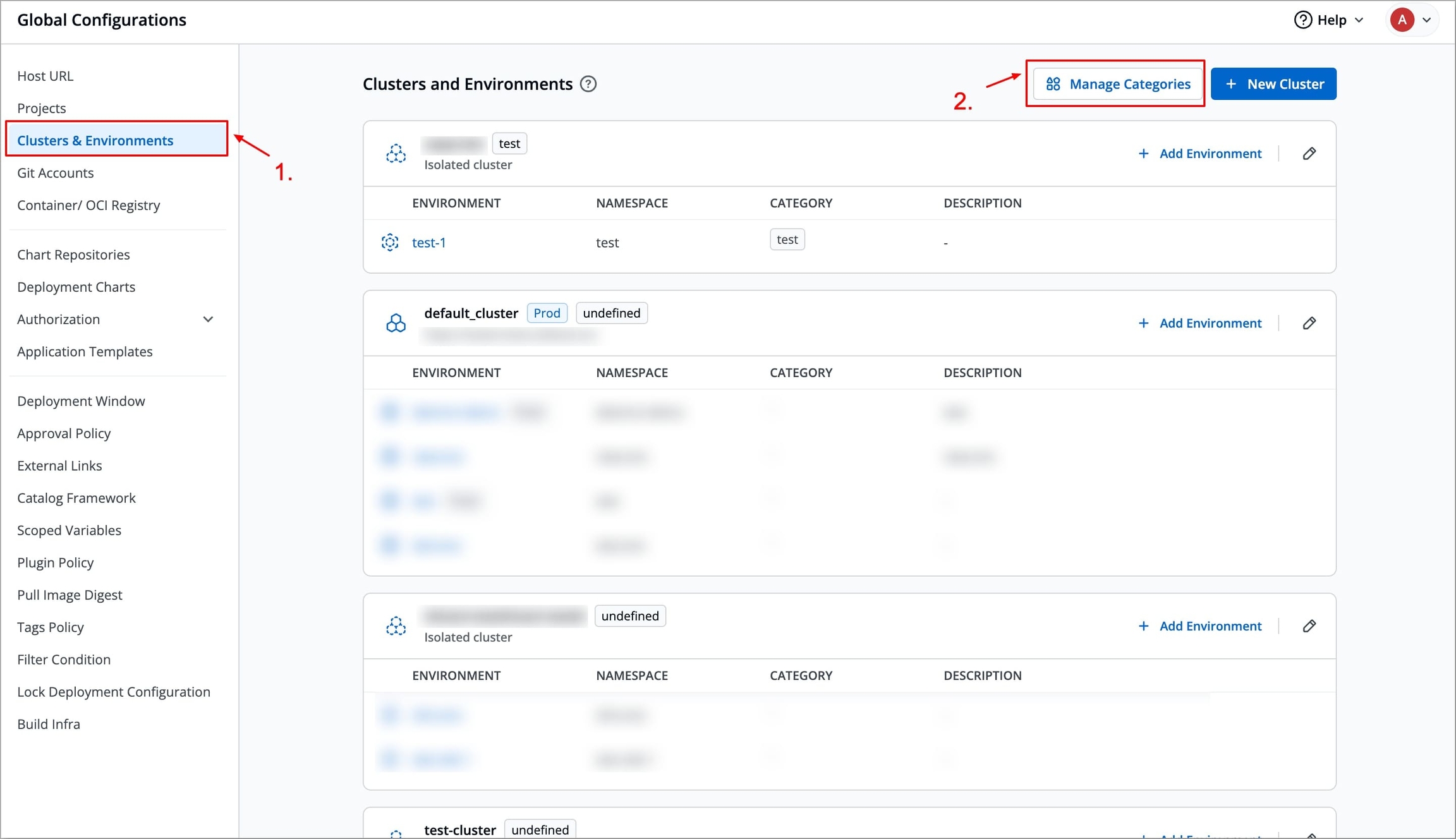

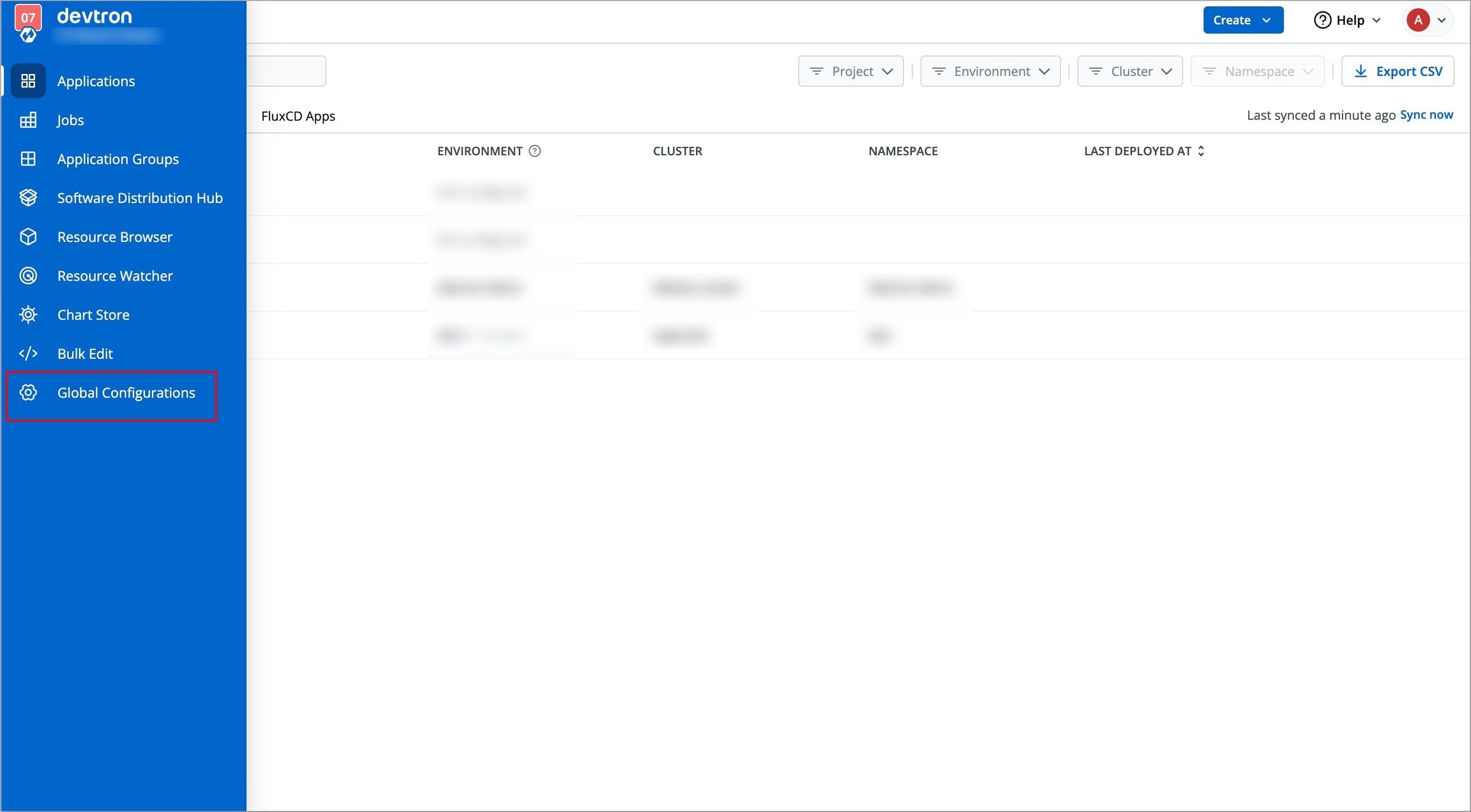

Select the Cluster & Environment section of global configuration and click on Add Cluster to add your cluster.

Add Cluster:

Provide the below information to add your kubernetes cluster:
    1.
    Name
    2.
    Kubernetes Cluster Info
      Server URL
      Bearer token
    3.
    Prometheus Info
      Prometheus endpoint
        Basic
          Username
          Password
        Anonymous
      TLS Key
      TLS Certificate

1. Name

Give a name to your cluster inside the name box.

2. Kubernetes Cluster Info

Provide your kubernetes cluster’s credentials.
    Server URL
Provide the endpoint/URL of your kubernetes cluster.It is recommended to use a self-hosted URL instead of cloud hosted. Self-hosted URL will provide the following benefits.
(a) Disaster Recovery - It is not possible to edit the server-url of a cluster. So if you're using an eks url, For eg- *****.eu-west-1.elb.amazonaws.com it will be a tedious task to add a new cluster and migrate all the services one by one. While using a self-hosted url For eg- clear.example.com you can just point to the new cluster's server url in DNS manager and update the new cluster token and sync all the deployments.
(b) Easy cluster migrations - Cluster url is given in the name of the cloud provider used, so migrating your cluster from one provider to another will result in waste of time and effort. On the other hand, if using a self-hosted url migrations will be easy as the url is of single hosted domain independent of the cloud provider.
    Bearer token
Provide your kubernetes cluster’s Bearer token for authentication purposes so that the Devtron tool will be able to talk to your kubernetes cluster and can deploy your application in your kubernetes cluster.

3. Prometheus Info

Prometheus is a powerful solution to provide graphical insight into your application behavior. If you want to see your application matrix against your applications deployed in kubernetes, install Prometheus in your kubernetes cluster. The below inputs are required to configure your prometheus into Devtron’s tool.
    Prometheus endpoint
Provide the URL of your prometheus. Prometheus supports two types of authentication Basic and Anonymous. Select the authentication type for your Prometheus setup.
    Basic
If you select the basic type of authentication then you have to provide the Username and Password of prometheus for authentication.
    Anonymous
If you select Anonymous then you do not have to provide any username and password for authentication.
    TLS Key & TLS Certificate
TLS key and TLS certificate both options are optional, these options are used when you use a custom URL, in that case, you can pass your TLS key and TLS certificate.

K8s Version

on saving or update a cluster there is a call to fetch k8s version, it will store corresponding to cluster on db. used in listing api's and app detail page for grafana url.
Check the below screenshots to know how it looks like If you select the Basic authentication type
If you select the Anonymous authentication type
Now click on Save Cluster to save your cluster information.

Note:

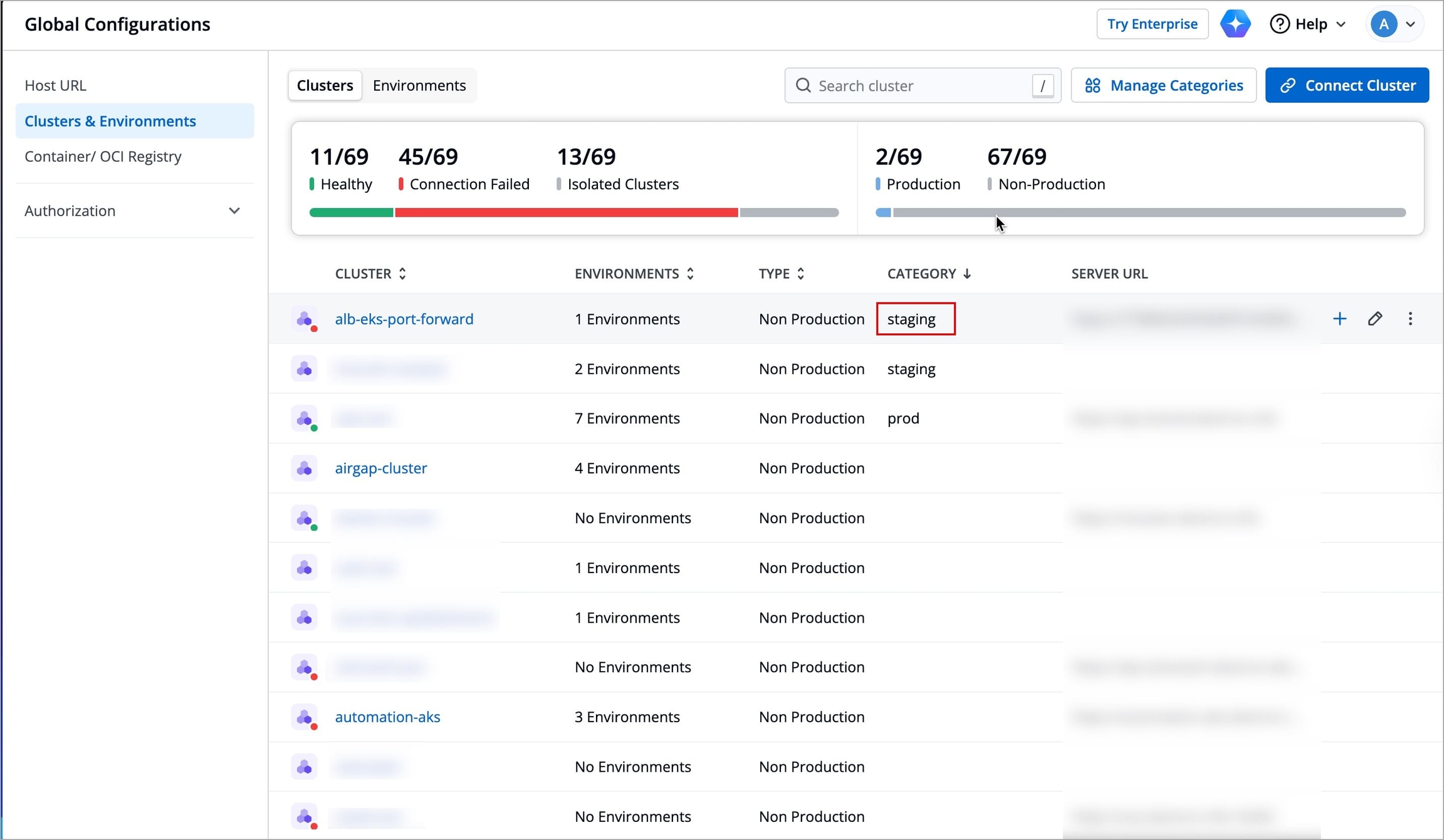

Your kubernetes cluster gets mapped with the Devtron when you save your kubernetes cluster Configuration. Now the agents of devtron will be installed on your cluster so that the components of devtron can communicate to your cluster. When the agent starts installing on your cluster, you can check the status of the agents in the Cluster & Environment tab also.
Click on Details to check what got installed inside the agents. A new window will be popped up displaying all the details about these agents.

Add Environment

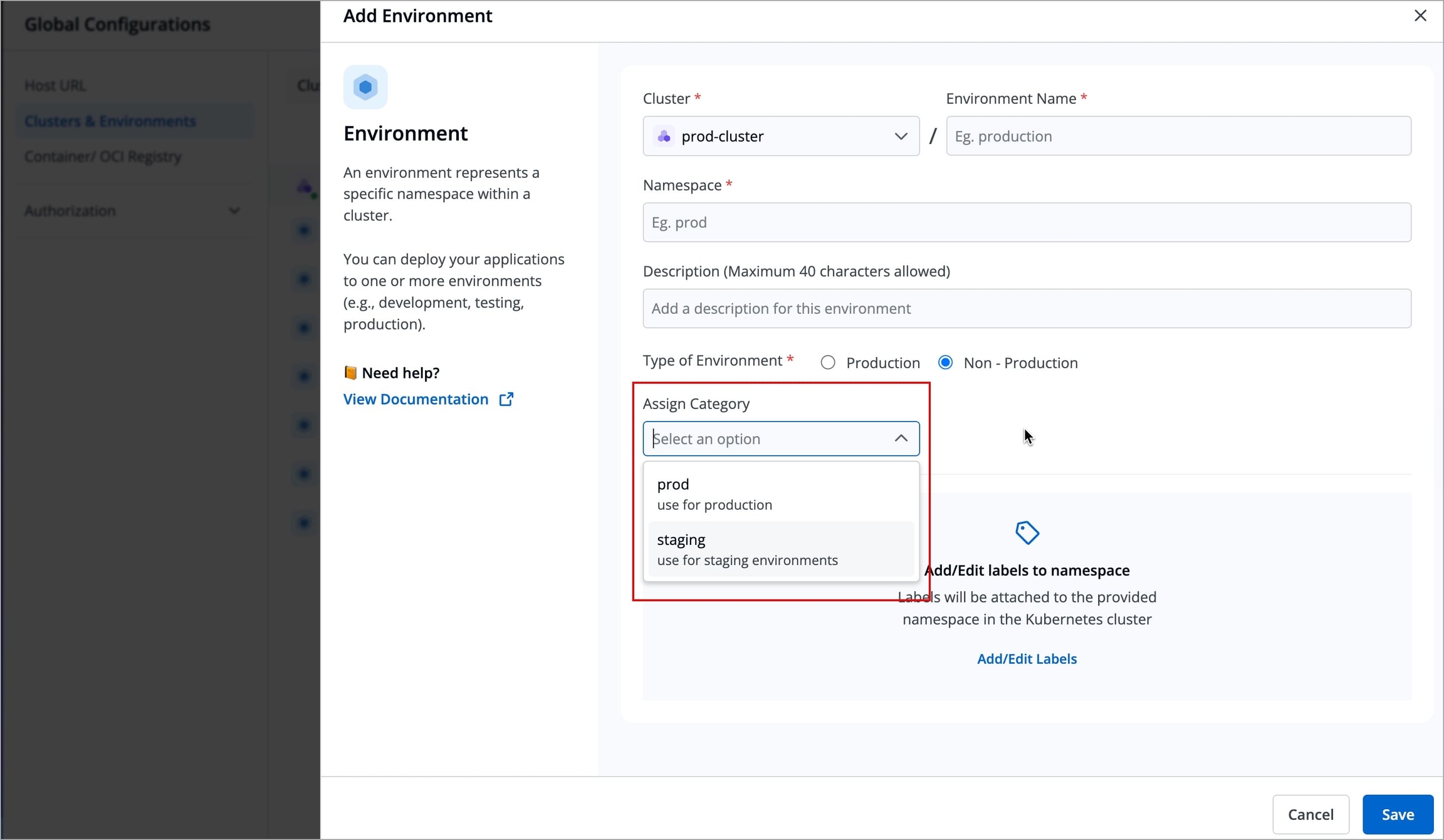

Once you have added your cluster in Cluster & Environment, you can add the environment also. Click on Add Environment, a window will be opened. Give a name to your environment in the Environment Name box and provide a namespace corresponding to your environment in the Namespace input box. Now choose if your environment is for Production purposes or for Non-production purposes. Production and Non-production options are only for tagging purposes. Click on Save and your environment will be created.
You can update an already created environment, Select and click on the environment which you want to update. You can only change Production and Non-production options here.
Note
You can not change the Environment name and Namespace name.
Click on Update to update your environment.
