Configure Lock Schema

Introduction

In Devtron, you can create CRDs for defining lock schema. Your lock schema will be used to determine the fields (in the resource manifest) that cannot be added/updated/deleted by non-superadmins. This is especially useful for preventing unwanted edits to the manifests of pod, deployment, configmap, and many more.

Who Can Perform This Action?


Editing Lock Schema

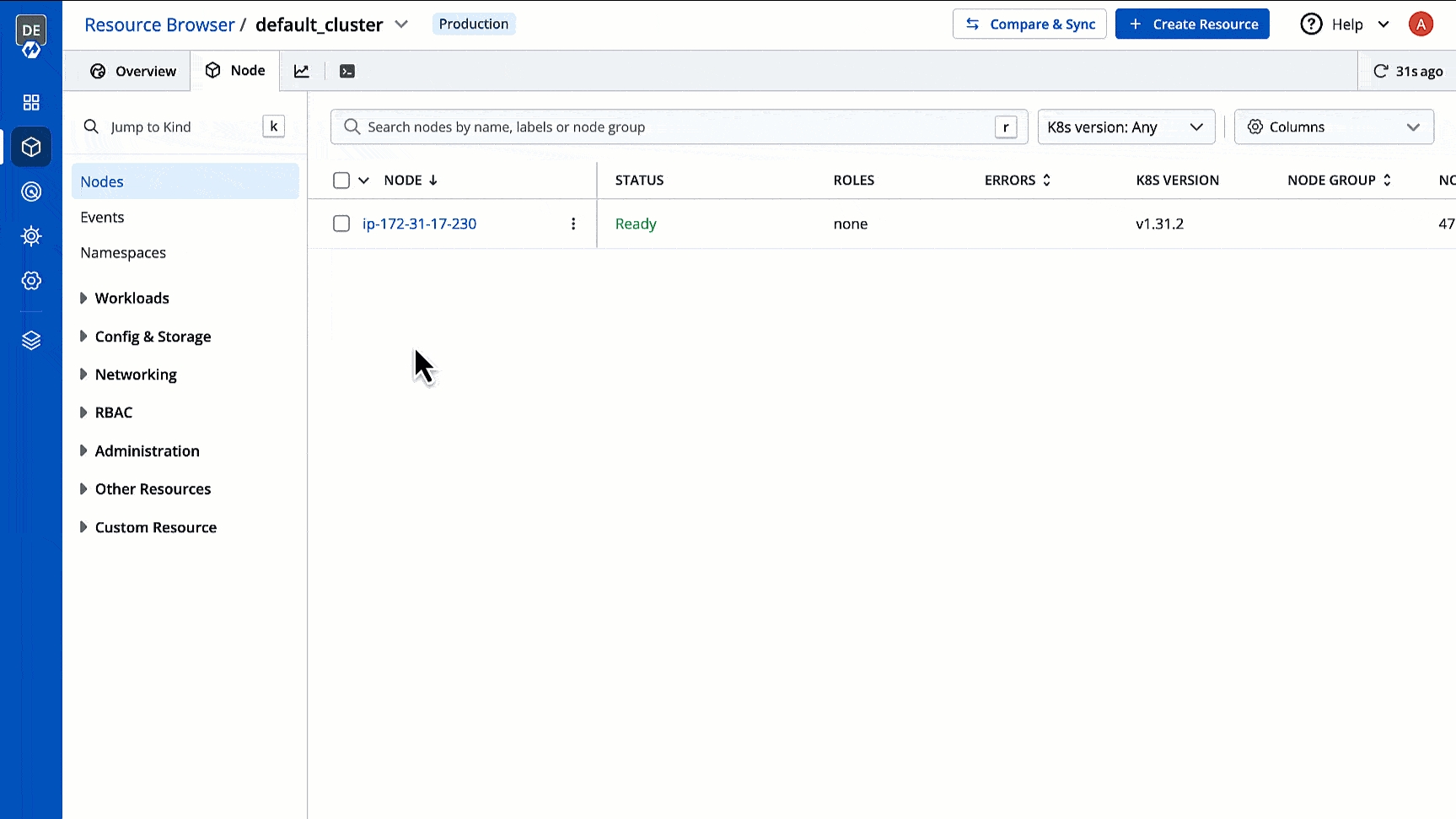

  1. Go to Resource Browser and select your cluster.

  2. Use the searchbox labelled 'Jump to Kind' and search for LockSchema.

    Figure 1: Searching Lock Schema

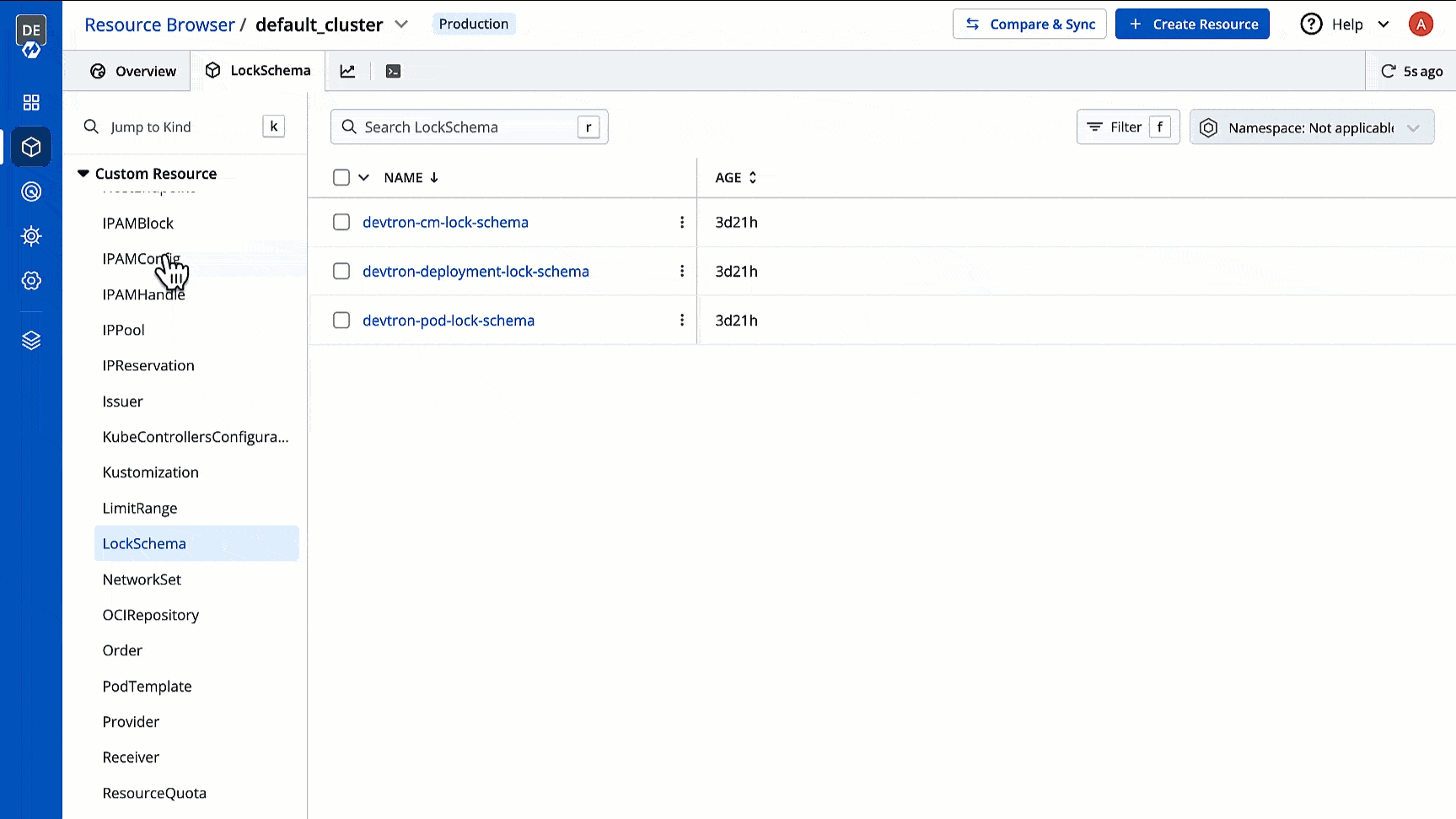

  3. Click the Lock Schema you wish to edit. In case no Lock Schema exists, you may create a Lock Schema for your resource kind.

    Figure 2: Click Lock Schema

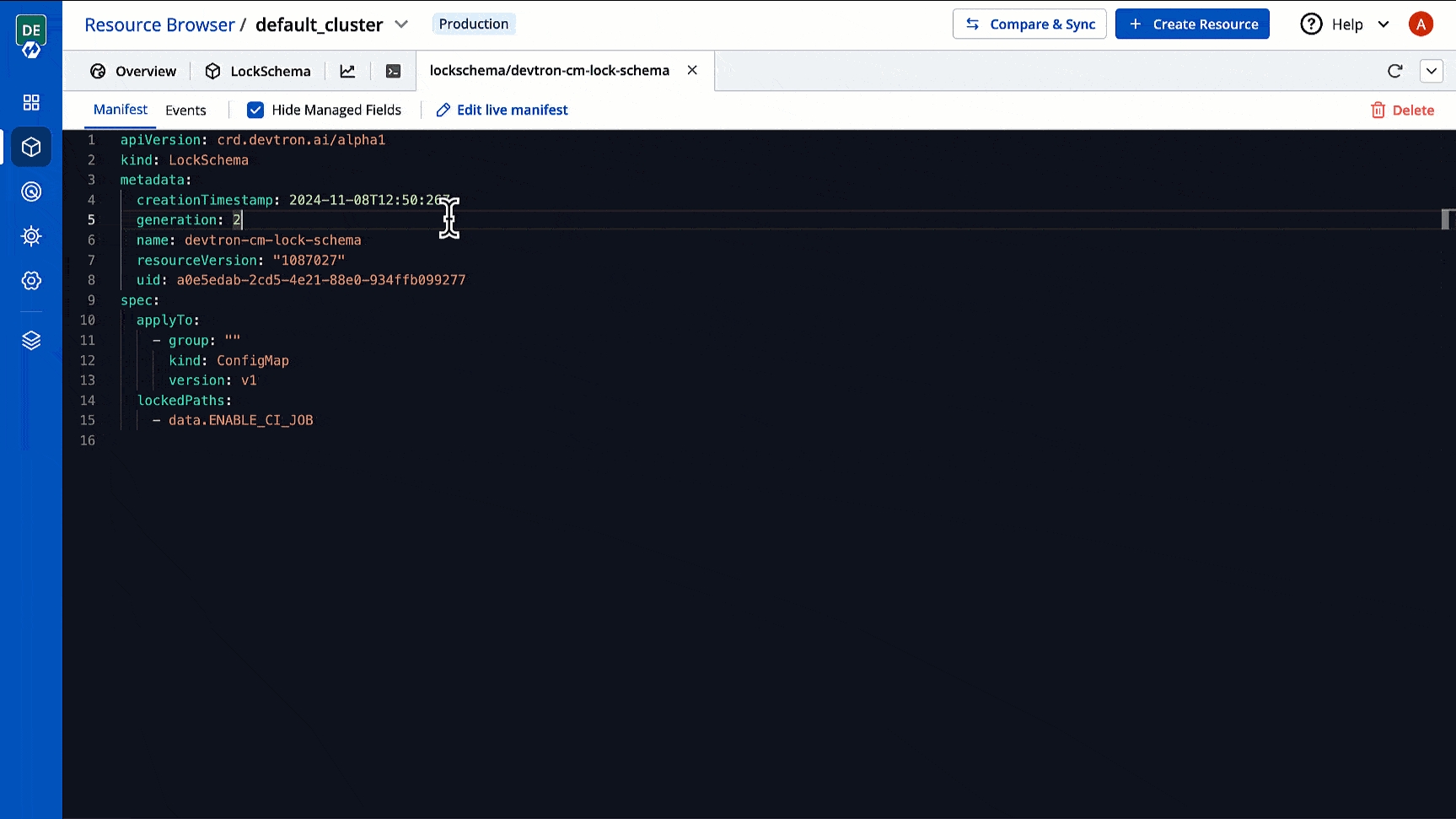

  4. Click Edit Live Manifest to modify the YAML.

    Figure 3: Edit Live Manifest

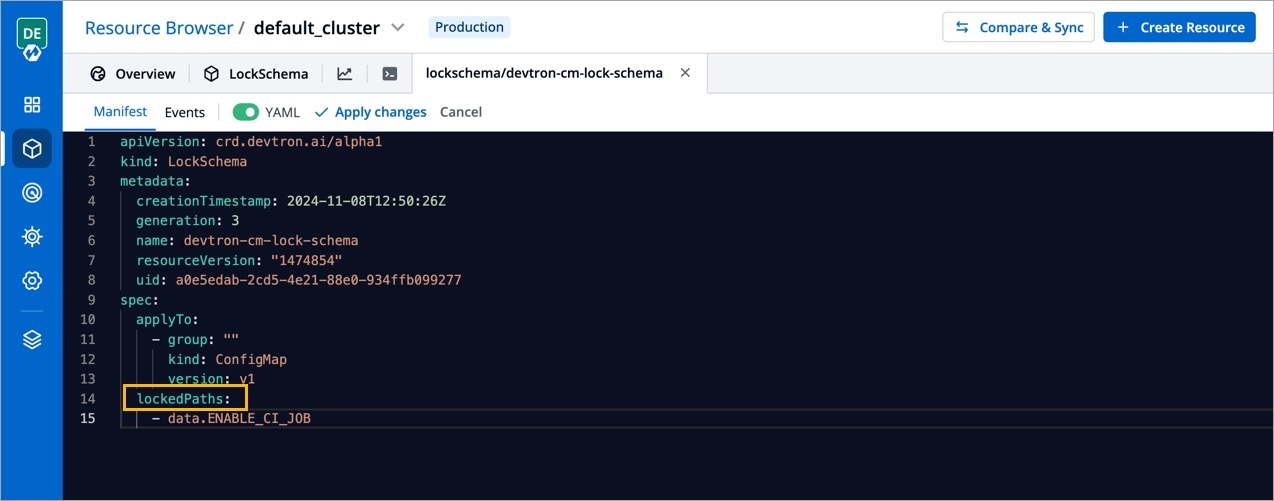

  5. Locate the lockedPaths list and specify the fields/paths you wish to lock from unwanted edits by non-superadmins in the manifest.

    Figure 4: Modifying Schema
  6. Click Apply Changes.


Create your own Lock Schema

  1. Go to Resource Browser and select your cluster.

  2. Click Create Resource at the top.

  3. Use the following template and specify the fields/paths you wish to lock in the lockedPaths list, also specify the resource kinds in applyTo. Once done, click Apply.

Lock Schema for ConfigMap
apiVersion: crd.devtron.ai/alpha1
kind: LockSchema
name: devtron-cm-lock-schema
spec:
applyTo:
    - group: ""
    kind: ConfigMap
    version: v1
lockedPaths:
    - data.ENABLE_CI_JOB
