Chart Group

PreviousDeploying MongoDB Helm ChartNextSecurity

Last updated 10 months ago

Was this helpful?

Introduction

Using Devtron UI, one or more Helm charts can be grouped and deployed together with a single click.

1. Create Group

  1. In the left pane, select Charts.

  2. On the Chart Store page, select Create Group from the upper-right corner.

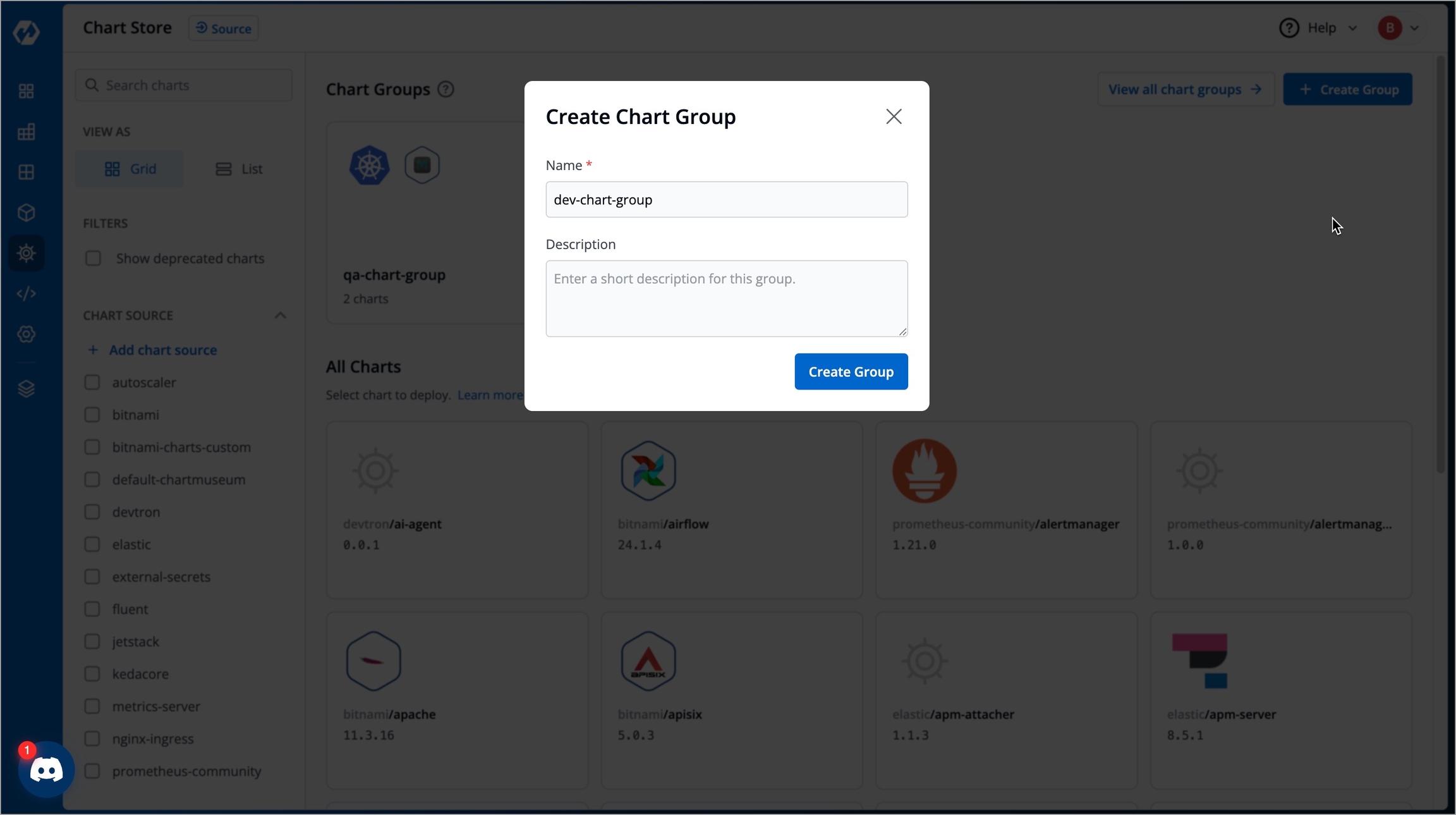

  1. In the Create Chart Group screen, enter name and description(optional) for the chart group, and then select Create Group.

Once you create the group, you can now select and add the charts to this chart group.

2. Add Charts To Group

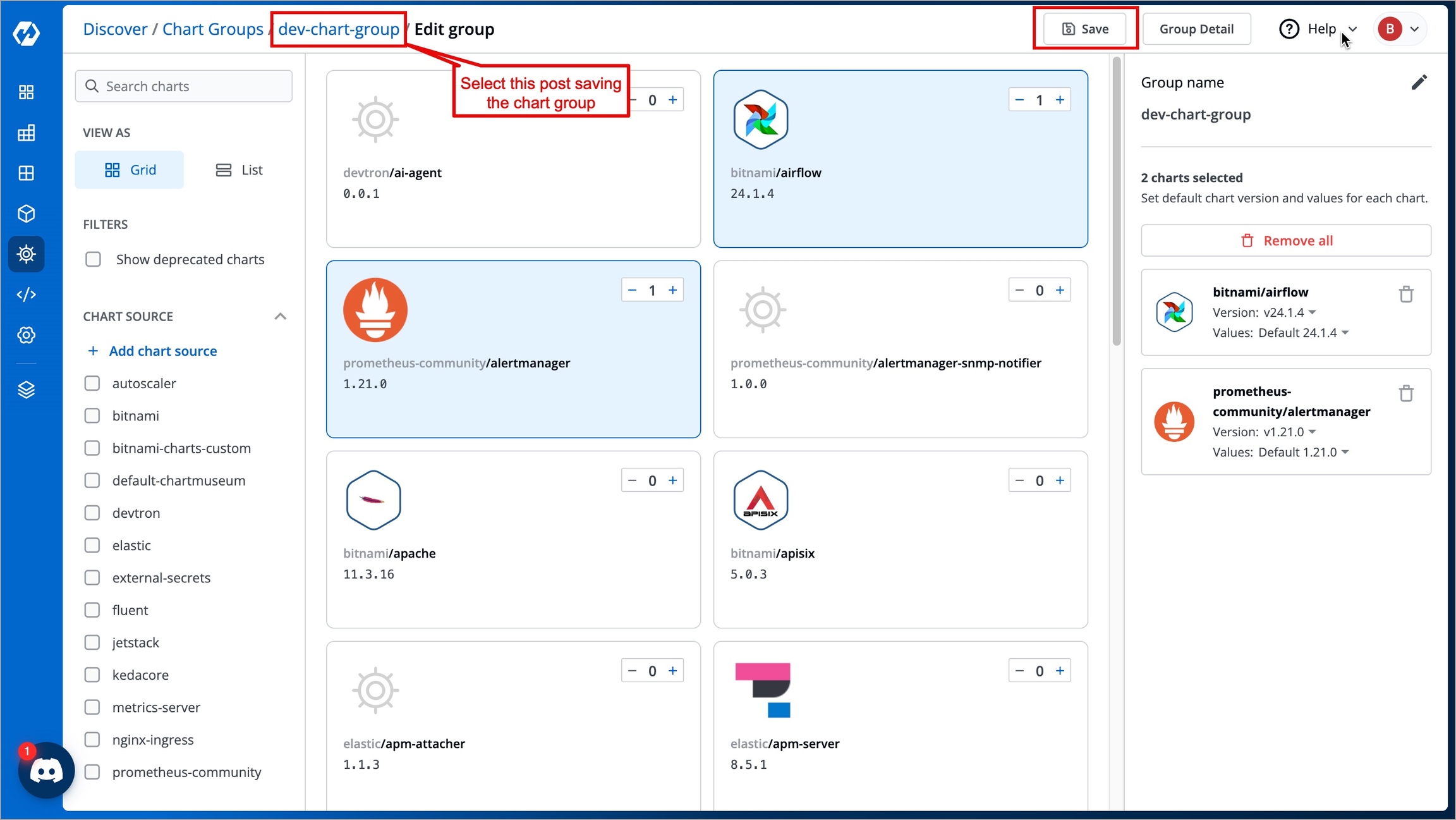

  1. To add a chart to the group, click the + sign at the top-right corner of a chart, and then select Save.

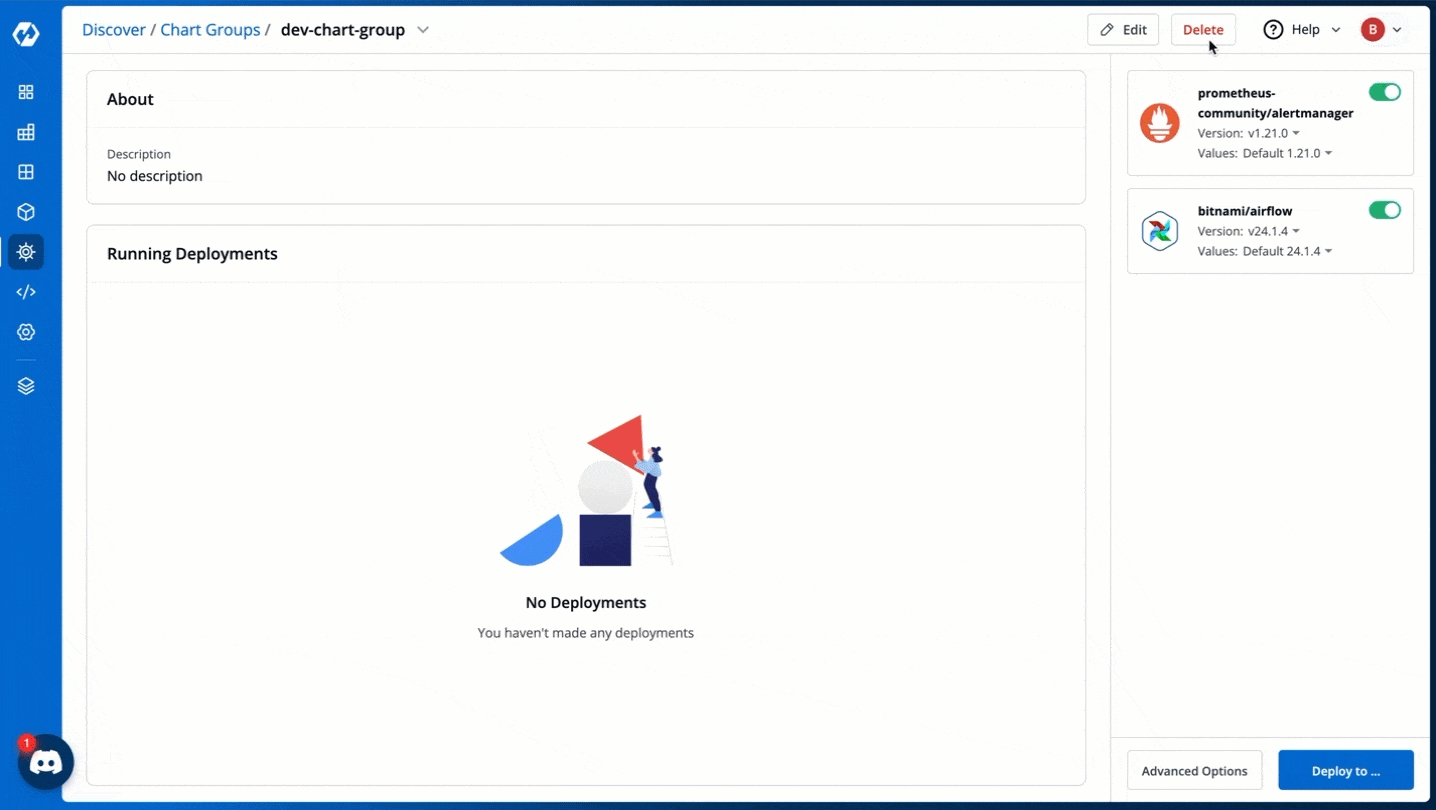

  1. Click on Group Detail to see all the running instances and group details. You can also edit the chart group from here.

3.Bulk Deploy and Edit Option for Charts

You can see all the charts in the chart group in the right panel.

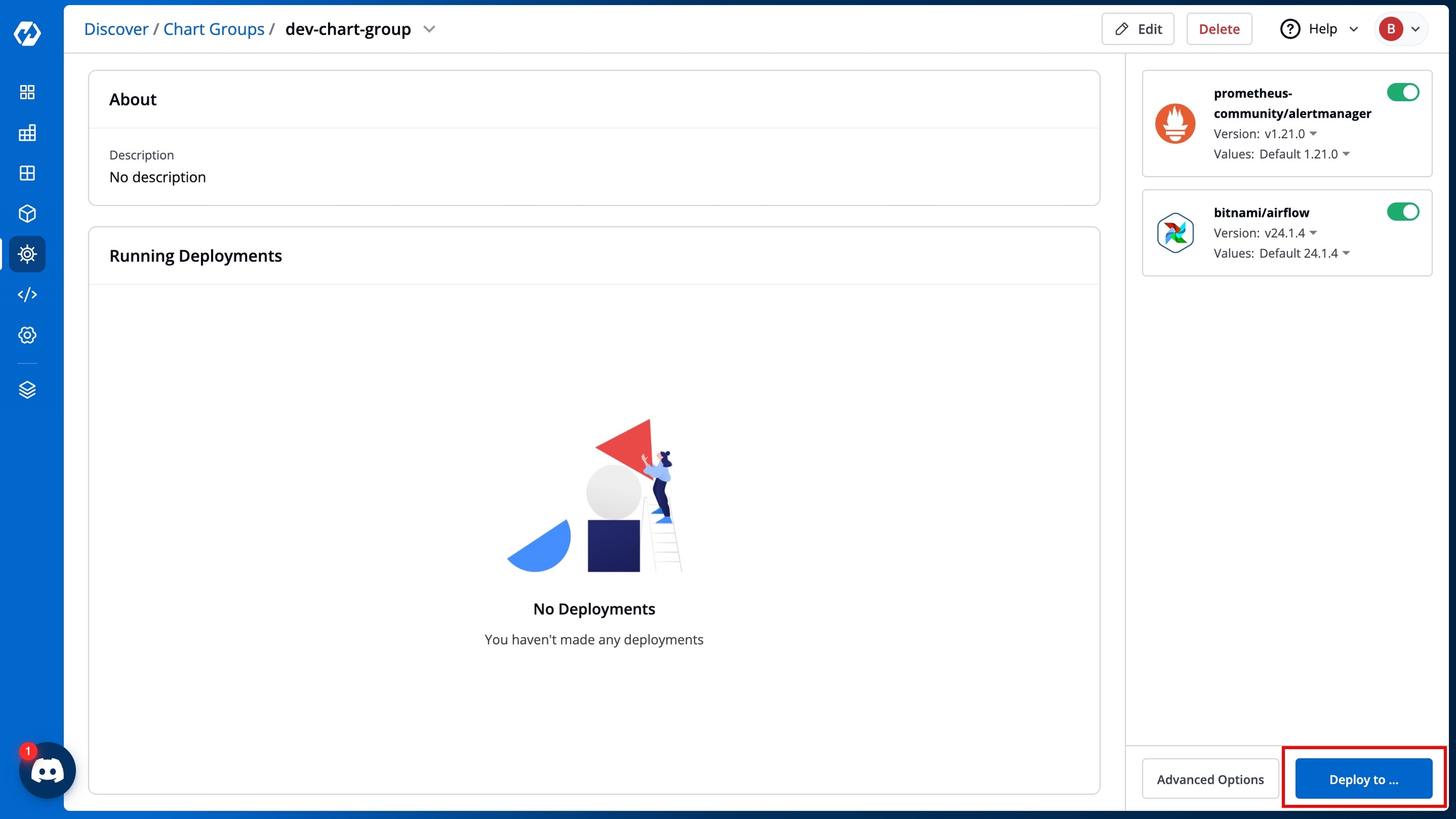

  1. Select Deploy to...

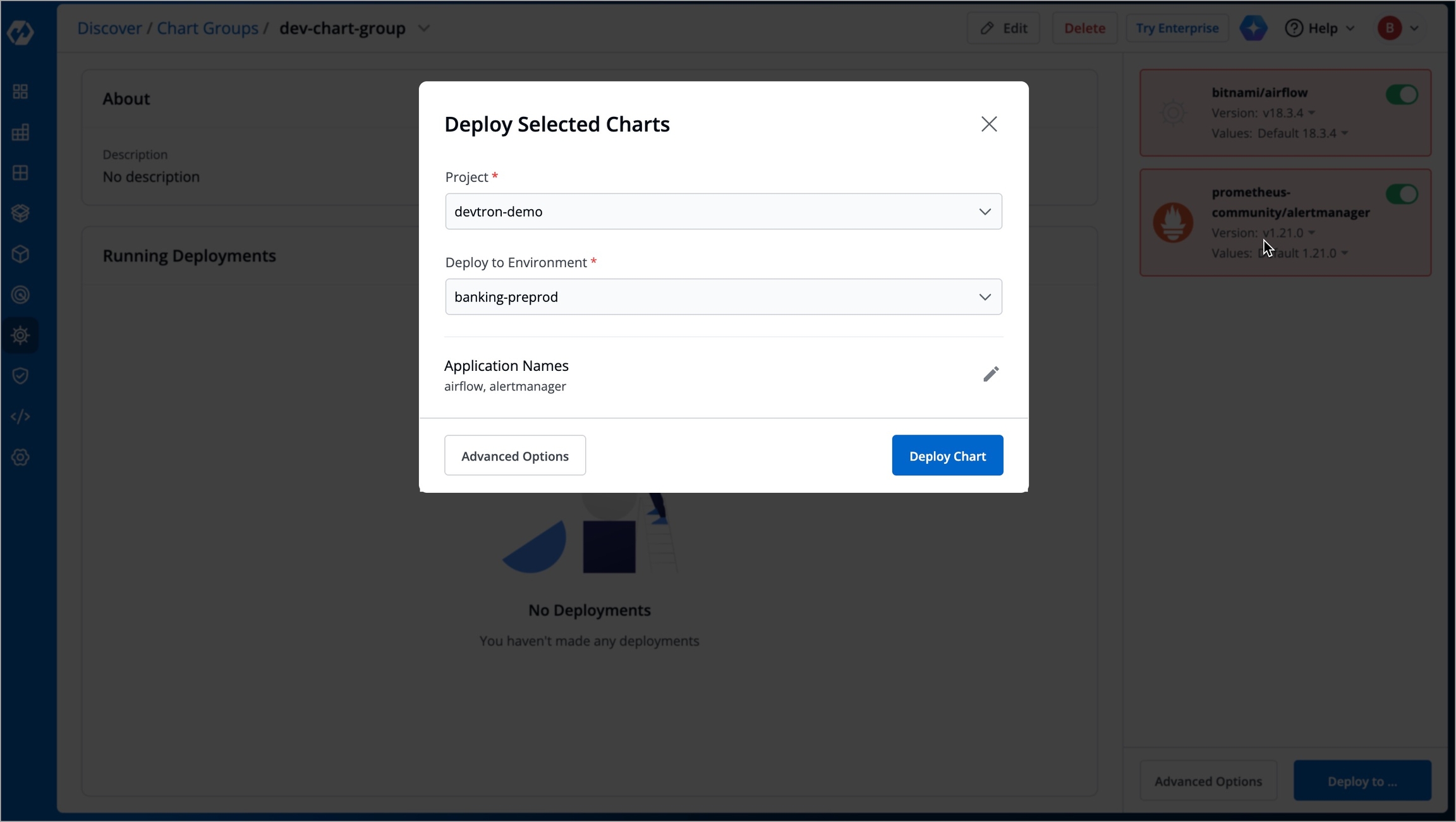

  1. In the Deploy Selected Charts, select the Project and Deploy to Environment values where you want to deploy the chart group.

  1. Select Advanced Options for more deploy options, such as editing the values.yaml or changing the Environment and Project for each chart.
